Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Wizzer' line is a tight-tolerance finishing tool which is intended for facing; primarily using the face of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

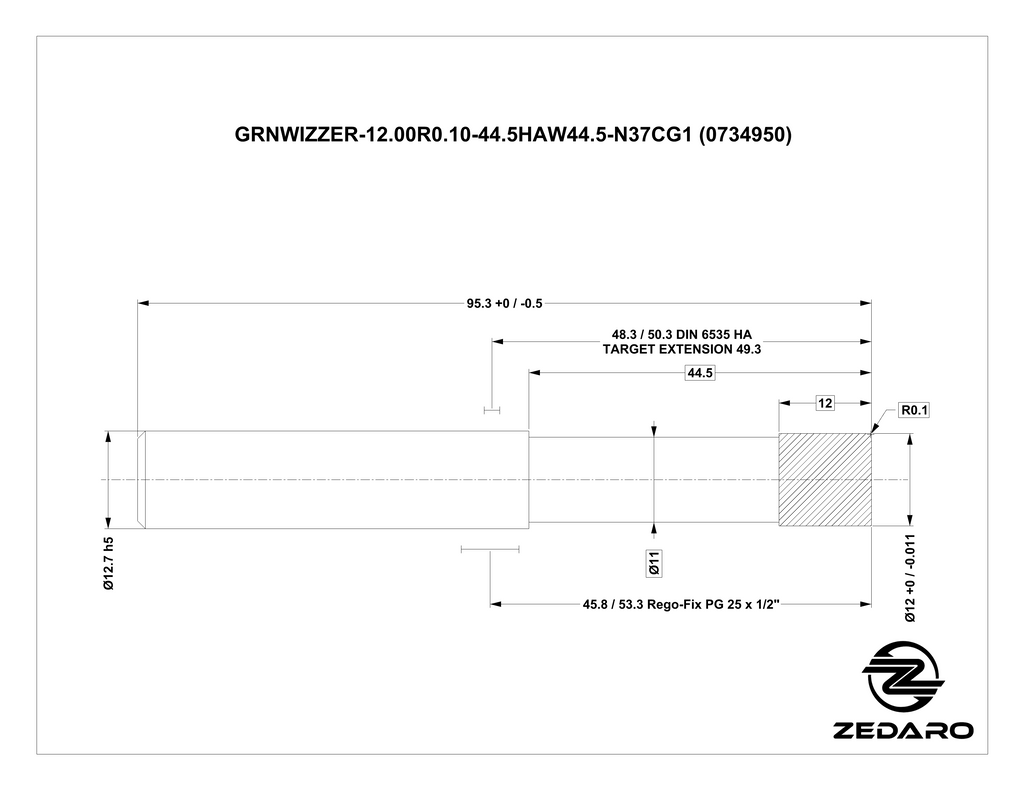

| Name | GRNWIZZER-12.00R0.10-44.5HAW44.5-N37CG1 | |
| EDP # | 0734950 | |
| Material | Wrought Aluminum | Application | Finish Face Milling <20k RPM (Wizzer) |

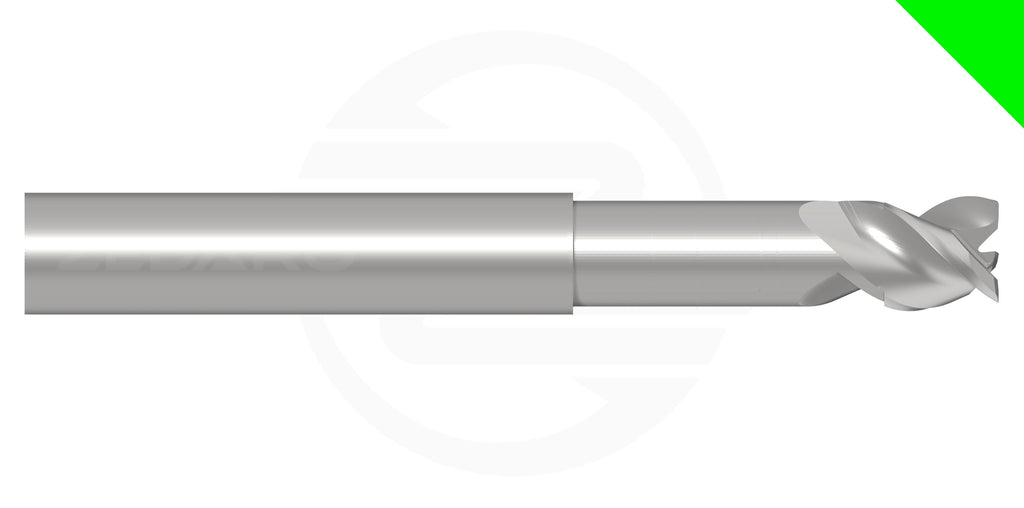

| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Corner Radius | 0.0039" | 0.100 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.4724" | 12.000 mm |
| Reach | 1.7520" | 44.500 mm |
| Minimum Extension | 1.8" | 44.5 mm |
| Maximum Extension | 2.7" | 68.6 mm |
| Shank Diameter h6 | 0.5000" | 12.700 mm |
| Overall Length | 3.7" | 94 mm |
| Cutting Edges | 3 | |
