Description

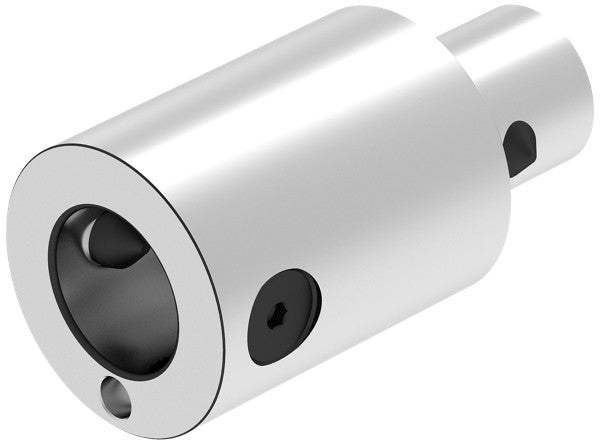

V.40.ABS40 EXTENSION
Mat No: 12543792, Article No: 8420904088
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT V.40.ABS40 EXTENSION 12543792 (0660778) | |
| EDP # | 0660778 | |
| Weight | 14.0 oz | 397.4 g |

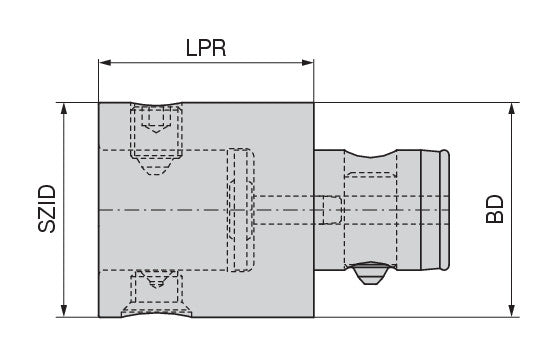

| Machine interface size | ABS 40 | |
| Neck diameter (BD) BD/D2 | 1.5748 inch | 40 mm |
| Protruding length LPR/A | 1.5748 inch | 40 mm |
| nominal size SZID/Size | ABS 40 | |
| Flange diameter DF/D5 | 1.5748 inch | 40 mm |
| Clamping diameter (DCONWS) DCONWS/d1 | 0.7874 inch | 20 mm |
| Mounting spigot diameter DCONMS/D6 | 0.7874 inch | 20 mm |
| Overall length OAL/L3 | 2.5984 inch | 66 mm |
Application & Properties:
