Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
The 'Wizzer' line is a tight-tolerance finishing tool which is intended for facing; primarily using the face of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
| Tool Properties | ||
|---|---|---|

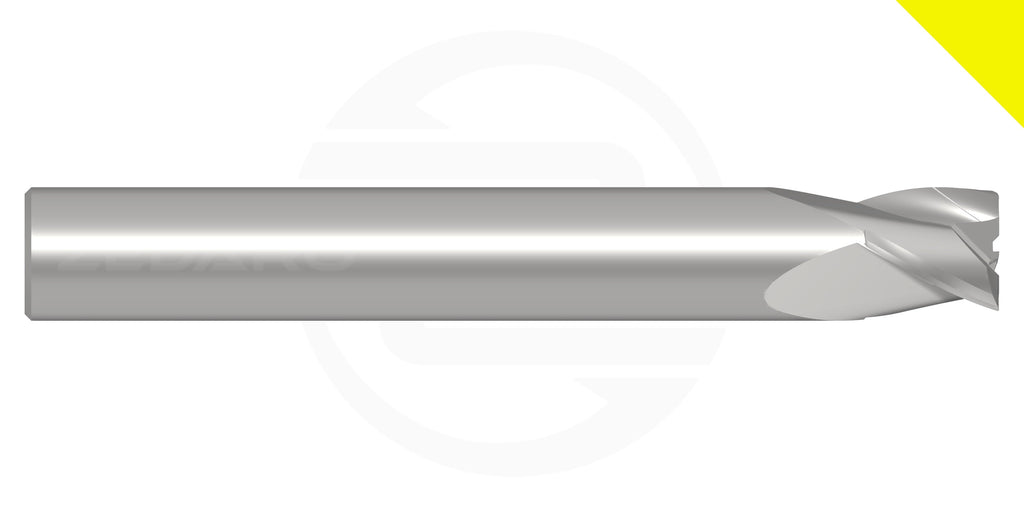

| Name | YELWIZZER-10.00N0.10-0730748-K28CE1 | |
| EDP # | 0730748 | |
| Material | Stainless Steel | Application | Finish Face Milling <20k RPM (Wizzer) |
| Form | Corner Chamfered | |
| Cutting Diameter | 0.3937" | 10.000 mm |
| Corner Size (45 deg.) | 0.0039" | 0.100 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3937" | 10.000 mm |
| Reach | 0.0000" | 0.000 mm |
| Minimum Extension | 0.8" | 20.0 mm |
| Maximum Extension | 2.2" | 56.1 mm |
| Shank Diameter h5 | 0.3937" | 10.000 mm |
| Overall Length | 2.8" | 72 mm |
| Cutting Edges | 3 | |
| Tolerance Class | null | |
| Cutting Parameters - Bottom Finishing | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.2992" | 33.000 mm |
| Step Over (Radial, Ae) | 0.3937" | 10.000 mm |
| Step Down (Axial, Ap) | 0.0079" | 0.200 mm |
| Spindle Speed (S) | 3600 RPM | |
| Feed Rate (F) | 15 in/min | 380 mm/min |
| Cutting Speed (Vc) | 371 ft/min | 113 m/min |
