Description
Mapal Order Number: 31459786
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

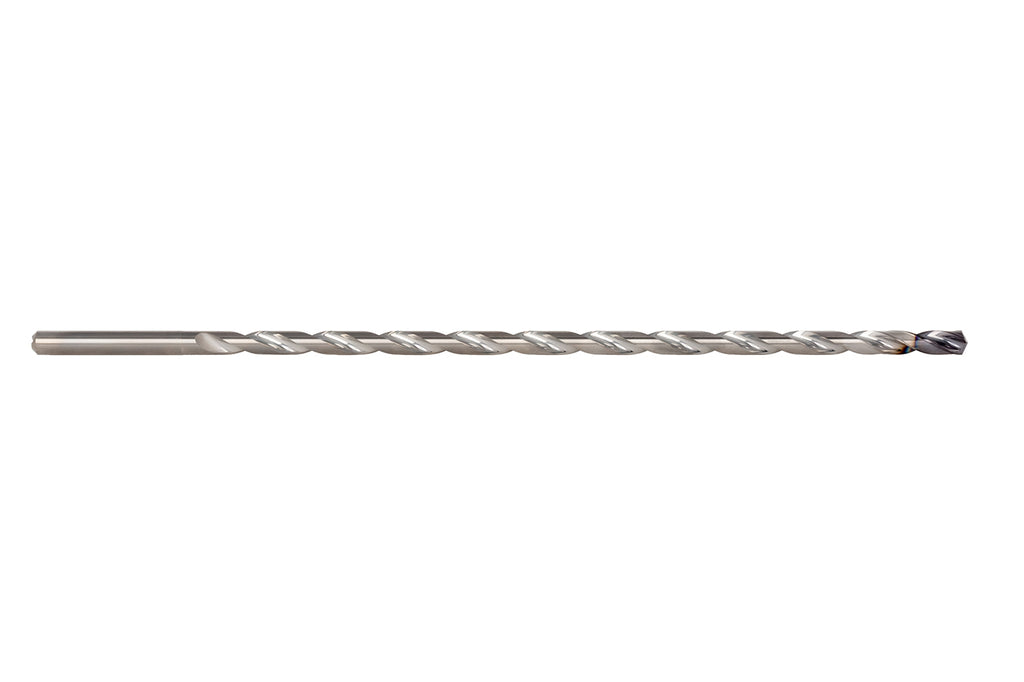

| Name | Mapal SCD701-0700-2-4-134HA40-HP400 MEGA-Deep-Drill-Steel 31459786 | |
| EDP # | 0734926 | |
| Drilling Depth | 40xD | |
| d1 | 0.2756" | 7.000 mm |
| Drilling Depth Value | 11.0236" | 280.000 mm |
| d2 | 0.3150" | 8.000 mm |
| l1 | 13.0315" | 331.000 mm |
| l2 | 11.4567" | 291.000 mm |
| l3 | 11.0236" | 280.000 mm |
| l4 | 1.4173" | 36.000 mm |
| Cooling | Internal Cooling | |
| Number Of Cutting Edges (z) | 2 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 9 | |
| Shank Type | HA | |
| Tip Angle | 134° | |
| Material Group | ||
Product Features:
- The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deepdrilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideallyadapted to high feed rates and maximum productivity in bore machining up to 40xD.
Technical Reference Files:
Brochure MEGA-Deep-Drill-Steel
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
