Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Picker' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds over 20K rpm.
'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
| Tool Properties | ||
|---|---|---|

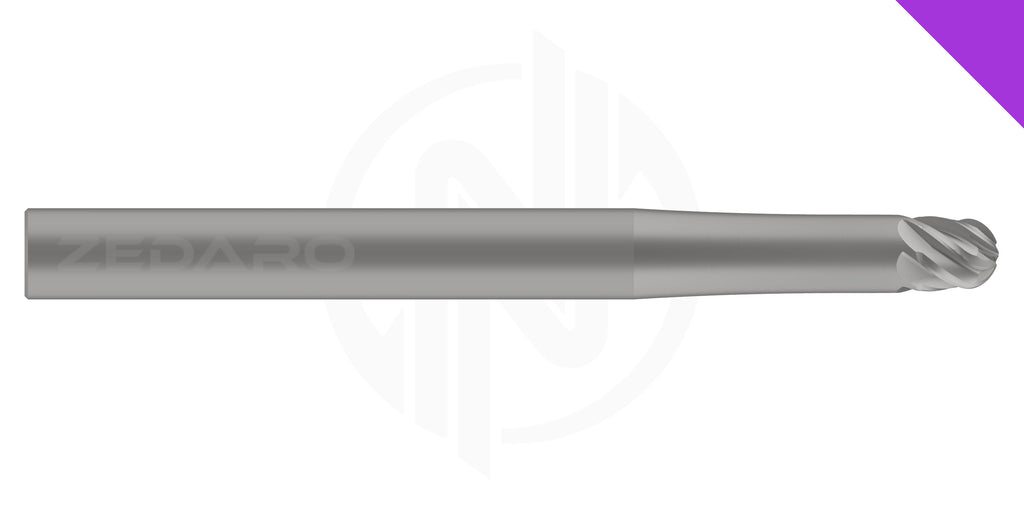

| Name | PURPICKER-7.620V7.62-7.62MAS38.1-J40CE1 | |
| EDP # | 0764393 | |
| Material | Titanium | Application | Finish 3D Point Milling <20k RPM (Picker) |
| Form | Tapered Ball | |
| Cutting Diameter | 0.3000" | 7.620 mm |
| Taper per Side | 2.0° | |
| Length of Cut | 0.3110" | 7.900 mm |
| Reach | 0.3000" | 7.620 mm |
| Minimum Extension | 1.5" | 38.1 mm |
| Maximum Extension | 3.4" | 87.3 mm |
| Shank Diameter h5 | 0.3750" | 9.525 mm |
| Overall Length | 4.0" | 101 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h6 | |
