Description
Ceratizit Article Number: 6263220609
Ceratizit Material Number: 13051781
Ceratizit Komet Number (Unpacked): W30 04990.045510
Ceratizit Komet Number (Packed): W3004990045510
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

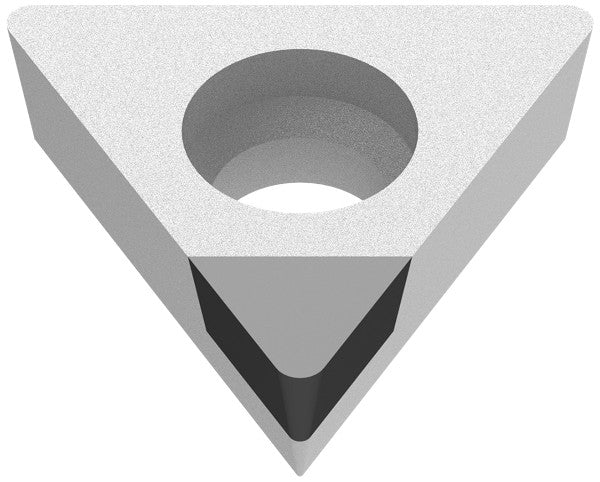

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOEX 06T104FN_A2 CTDPU20 6263220609 | |
| EDP # | 0661038 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 4.0 g |

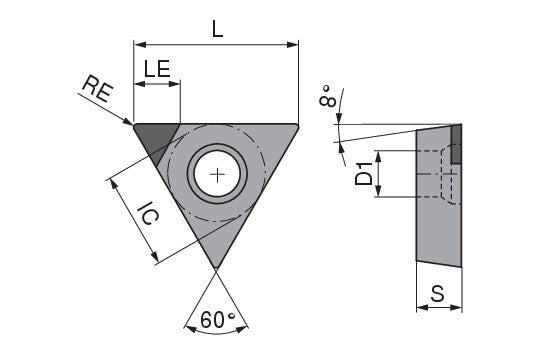

| designation | 06T104FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2614" | 6.640 mm |
| Insert thickness / S | 0.0709" | 1.800 mm |
| Fixing hole diameter / D1 | 0.0866" | 2.200 mm |
| Inscribed circle diameter / IC | 0.1575" | 4.000 mm |
| Cutting edge effective length / LE | 0.0709" | 1.800 mm |
| Insert index count / NOI | 1 | |
| TCE (NOI) | A (1) | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTDPU20 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
