Description
MODIFIED ZSG-4.1.125.160.MBG CENTRIC VICE WITH GRIP JAWS Sealed centric vice. No jaws included, Ball bearing mounted spindle ± 0.01 mm repeatability Suitable for PNG and MNG

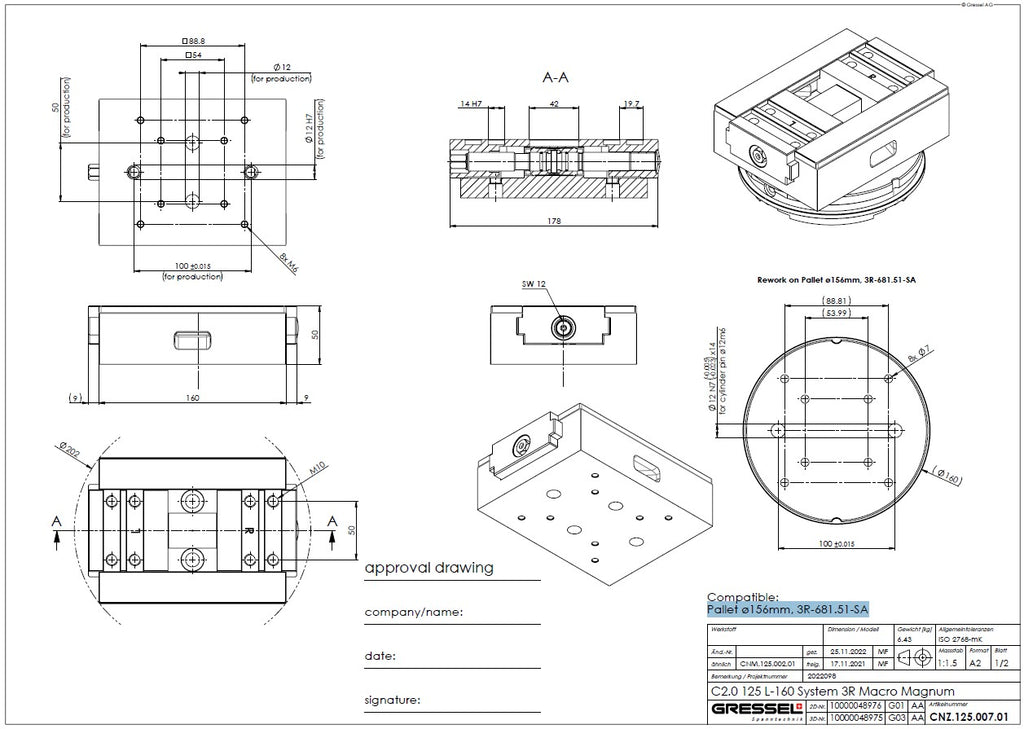

This item is modified to fit onto a System3R Macro Magnum Pallet:
ø156mm, 3R-681.51-SA
Mat No: (None), Article No: CNZ.125.007.01C2.0
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT MODIFIED ZSG-4.1.125.160.MBG CENTRIC VICE WITH GRIP JAWS 8087815300 (0712601) | |
| EDP # | 0712601 | |
| Weight | 310.4 oz | 8800.0 g |

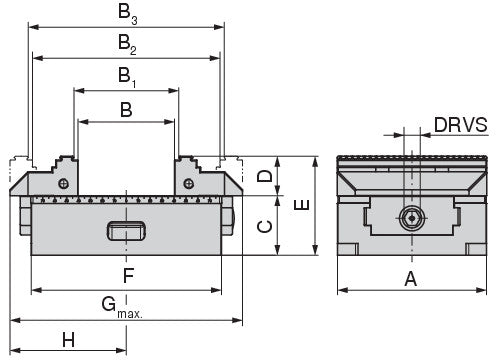

| A | 4.9213 inch | 125 mm |
| B | 0 - 80 mm | |
| B1 | 8 - 87 mm | |
| B2 | 77 - 156 mm | |
| B3 | 84 - 163 mm | |
| C ±0.01 | 1.9685 inch | 50 mm |
| D | 1.2992 inch | 33 mm |
| E | 3.2677 inch | 83 mm |
| F | 6.2992 inch | 160 mm |
| H | 4.3898 inch | 111.5 mm |
| Gmax. | 8.1890 inch | 208 mm |
| D6 H6 | 0.9843 inch | 25 mm |
| Maximum clamping force MXC | 35 kN | |
| Drive size DRVS | 0.4724 inch | 12 mm |
| Designation | ZSG-4.1.125.160.MBG | |
