Description
Ceratizit Article Number: 5906508010
Ceratizit Material Number: 12180938
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX252-00800.00800.R02.R00400.HA.X104 Ball Nosed Cutter 5906508010 | |
| EDP # | 0717949 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 40.0 g |

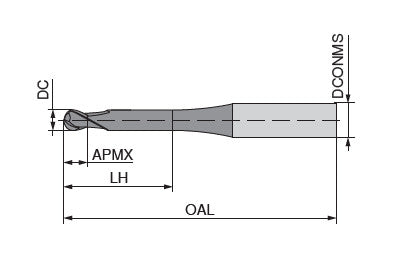

| Cutting diameter / DC +/-0.0005 | 0.0800" | 2.032 mm |
| Depth of cut maximum / APMX | 0.0800" | 2.032 mm |
| Head length / LH | 1.7040" | 43.282 mm |
| Protruding length / LPR | 2.5827" | 65.600 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Mounting spigot diameter / DCONMS -0.0001 / -0.0004 | 0.2500" | 6.350 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Corner radius / RE | 0.0400" | 1.016 mm |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
