Description
Ceratizit Article Number: 8405202500
Ceratizit Material Number: 12614449
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

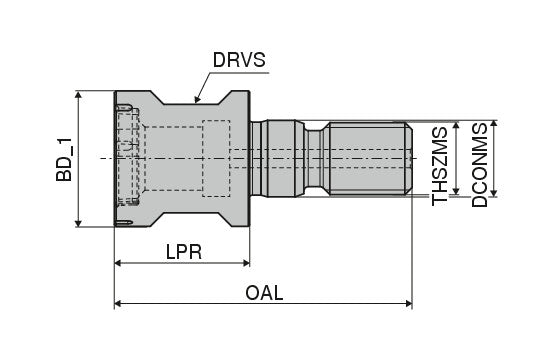

| Properties | ||
|---|---|---|

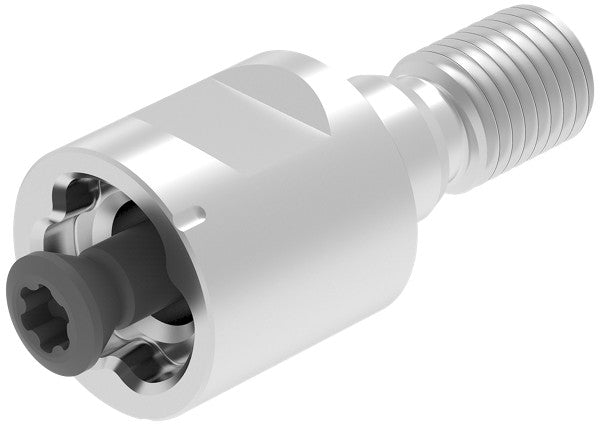

| Name | Ceratizit EL25-A-G25-A MultiLock Screw-in adapter, Type 8405202500 | |
| EDP # | 0722378 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 76.0 g |
| Clamping diameter (DCONWS) / DCONWS | 0.9449" | 24.000 mm |
| Protruding length / LPR | 0.7874" | 20.000 mm |
| Coupling Size | EL25 | |
| nominal size / SZID | 25 | |
| Connection thread nominal size workpiece side / THSZWS | M8 | |
| Mounting spigot diameter / DCONMS | 0.4921" | 12.500 mm |
| Overall length / OAL | 1.6535" | 42.000 mm |
| Body diameter, 1st cutting step / BD_1 | 0.9449" | 24.000 mm |
| Connection thread nominal size / THSZMS | M12 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
