Description
Material Number: W0742060341
Article Number: 50945060
This product is priced for and comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3A0742-06000.0120.R04..HB.C95 NC deburring cutter W0742060341 (0728369) | |
| EDP # | 0728369 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 23.3 g |

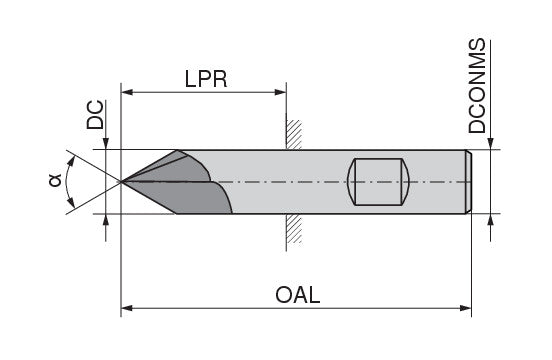

| Cutting diameter DC h6 | 0.2362 inch | 6 mm |
| Depth of cut maximum APMX | 0.0681 inch | 1.73 mm |
| Overall length OAL | 2.126 inch | 54 mm |
| Protruding length LPR | 0.7087 inch | 18 mm |
| Mounting spigot diameter DCONMS h6 | 0.2362 inch | 6 mm |
| Profile angle PRFA | 120 ° | |
| Peripheral effective cutting edge count ZEFP | 4 | |
Application & Properties:
Suitable Materials:
