Description
Ceratizit Article Number: 1089424095
Ceratizit Material Number: 12411061
Ceratizit Komet Number (Unpacked): V30 92401
Ceratizit Komet Number (Packed): V3092401
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

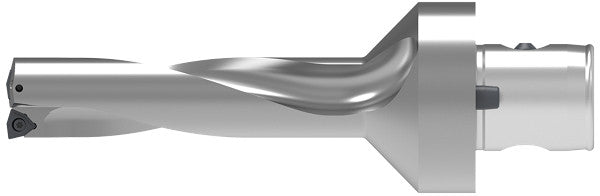

| Name | Ceratizit KUB Trigon ABS50 W2918/24/96/R; - Indexable Insert Drill 1089424095 | |
| EDP # | 0730633 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 24.0 oz | 676 g |

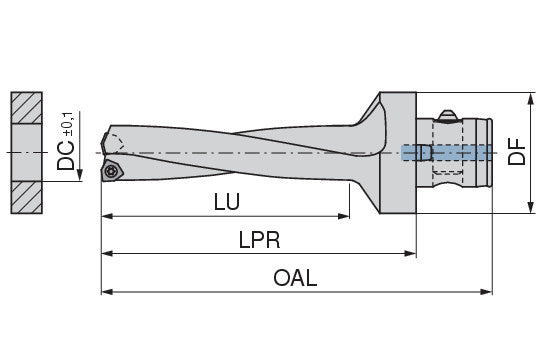

| Cutting diameter / DC | 0.9449" | 24.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 6.3780" | 162.000 mm |
| Protruding length / LPR | 5.1575" | 131.000 mm |
| Usable length / LU | 3.7795" | 96.000 mm |
| Insert | WOEX 040304 | |
| torque moment | 1.01 Nm | |
| Machine interface size | ABS 50 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
