Mapal Order Number: 31031148
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

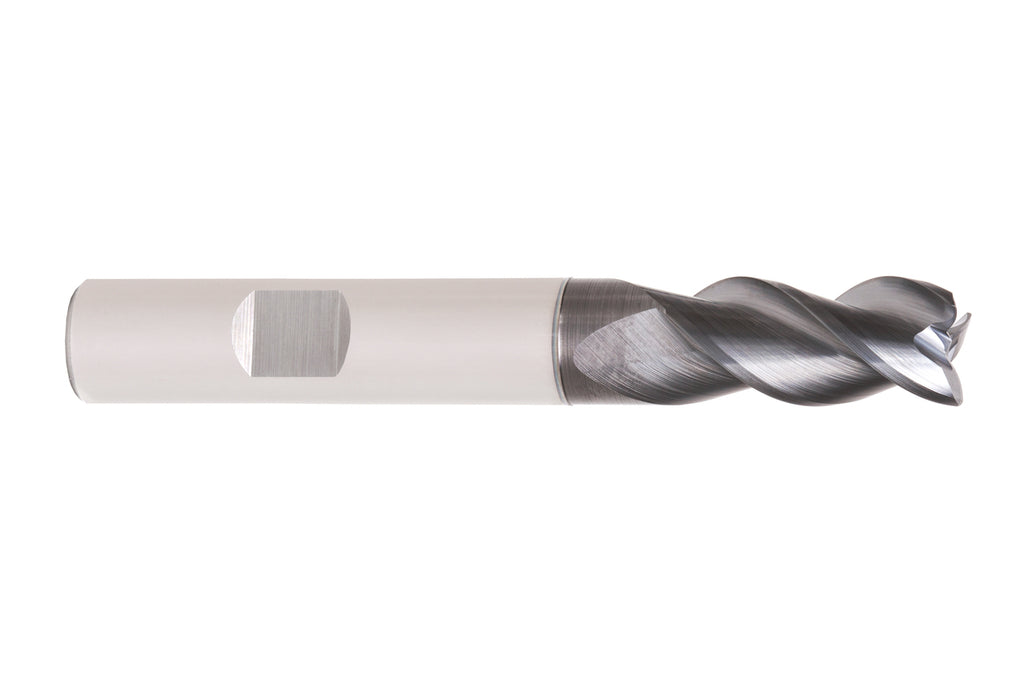

| Name | Mapal SCM810-0400Z03R-R0020HB-HP920 OptiMill®-Uni-HPC-Pocket 31031148 | |
| EDP # | 0675818 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.1575" | 4.000 mm |
| Shaft Diameter (d2) | 0.2362" | 6.000 mm |
| Cylindrical Part Diameter (d3) | 0.1496" | 3.800 mm |
| Total Length (l1) | 2.2441" | 57.000 mm |
| Length Of Cutting Edge (l2) | 0.4331" | 11.000 mm |
| Neck Length (l3) | 0.5118" | 13.000 mm |
| Corner Radius (R) | 0.0079" | 0.200 mm |
| Number Of Cutting Edges (z) | 3 | |
| Cooling | External Cooling | |
| Shank Type | HB | |
| Cutting Material | HP920 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 0.7480" - 0.8268" | 19.000 - 21.000 mm |
Product Features:
- The OptiMill®-Uni-HPC-Pocket corner milling cutter with integrated drill point was specially developed for pocket milling of steel and cast iron. The specially developed pointing together with three large chip spaces guarantees optimum chip removal. The special core rise ensures optimum stability in the cutting process, making the tool ideal for helical milling and grooving.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
