Description
Ceratizit Article Number: 8274532257
Ceratizit Material Number: 14576648
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

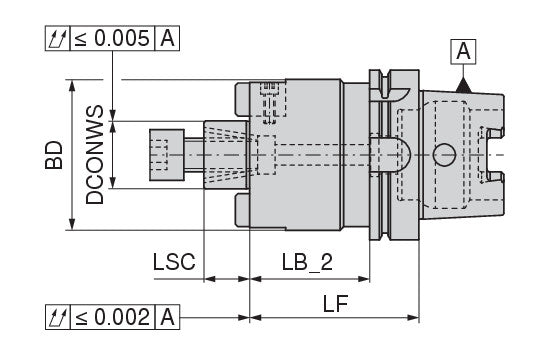

| Properties | ||
|---|---|---|

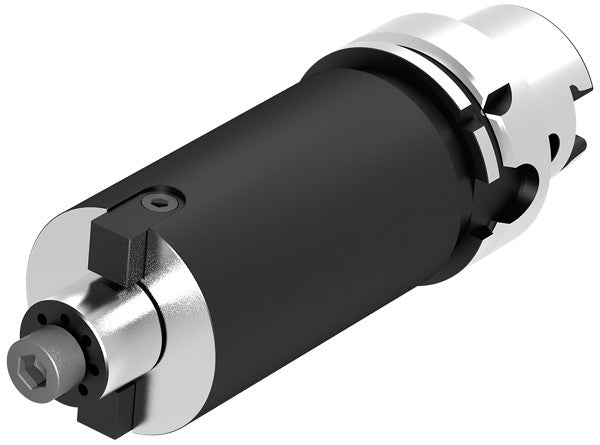

| Name | Ceratizit ISO12164-A63.QA.22.130.F Shell Mill Adapter 8274532257 | |
| EDP # | 0731666 | |
| Weight (1 pc.) | 76.0 oz | 2149 g |
| Machine interface size | HSK-A 63 | |
| Clamping diameter (DCONWS) / DCONWS | 0.8661" | 22.000 mm |
| Body length 2 / LB_2 | 4.0945" | 104.000 mm |
| Functional length / LF | 5.1181" | 130.000 mm |
| Body diameter, 1st cutting step / BD_1 | 1.8898" | 48.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 1.9803" | 50.300 mm |
| Clamping length machine side / LSC | 0.7480" | 19.000 mm |
| Balance quality | G 2,5 nmax 25000 | |
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-A form is probably the most common in the HSK family, and features drive slots which serve both to increase torque capability and provide rotational indexing (unequal slots). External features provide an interface for automatic tool change grippers and carousels. There is a bore milled directly into the side of the interface for RFID chip placement, and a threaded internal passage for coolant-through operation.
