Description
Ceratizit Article Number: 8274322079
Ceratizit Material Number: 8274322079
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

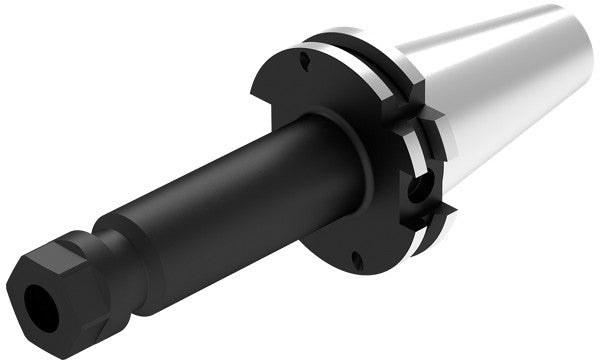

| Name | Ceratizit ISO7388-1.AD/B40.SF.ER32.120.50 Collet Chuck 8274322079 | |
| EDP # | 0744637 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machine interface size | SK 40 | |
| for collet | 470E (ER32) | |

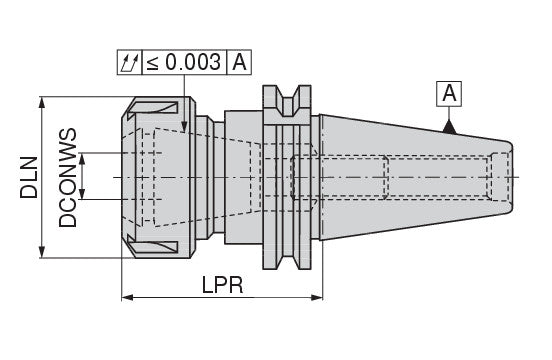

| Clamping Ø, nominal, workpc. side - range / DCONWS | 0.0787" - 0.7874" | 2.000 - 20.000 mm |
| Protruding length / LPR | 4.7244" | 120.000 mm |
| Diameter Lock Nut / DLN | 1.9685" | 50.000 mm |
| Neck diameter (BD) / BD | 1.8110" | 46.000 mm |
| Torque maximum / TQX | 136 Nm | |
| Balance quality | G 2,5 nmax 25000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
