Description
Ceratizit Article Number: 8100006500
Ceratizit Material Number: 8100006500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

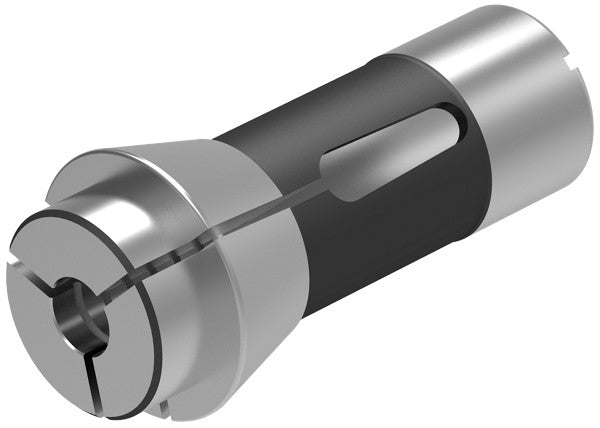

| Name | Ceratizit PC.116E/F13.SZ.06,500.R.GR Pressure Collet 8100006500 | |
| EDP # | 0755540 | |
| Weight (1 pc.) | 1.0 oz | 39.1 g |

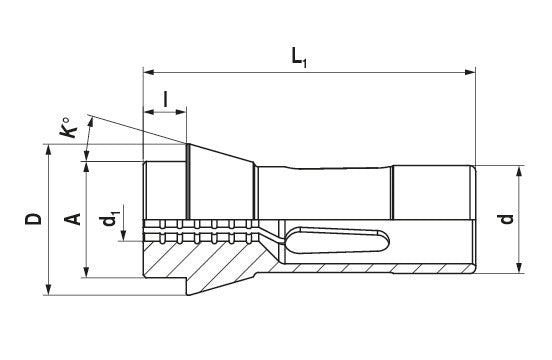

| Clamping diameter (DCONWS) / DCONWS | 0.2559" | 6.500 mm |
| Designation | PC. 116E ... R.GR | |
| Body half taper angle / BHTA | 16 ° | |
| Overall length / OAL | 2.5197" | 64.000 mm |
| Length collet clamp / LCLC | 0.2362" | 6.000 mm |
| Guide diameter / DGUI | 0.5118" | 13.000 mm |
| Functional diameter / DFC | 0.7480" | 19.000 mm |
| Diameter collet length clamp / DCLC | 0.5118" | 13.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
