Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
The 'Cruiser' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds above 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

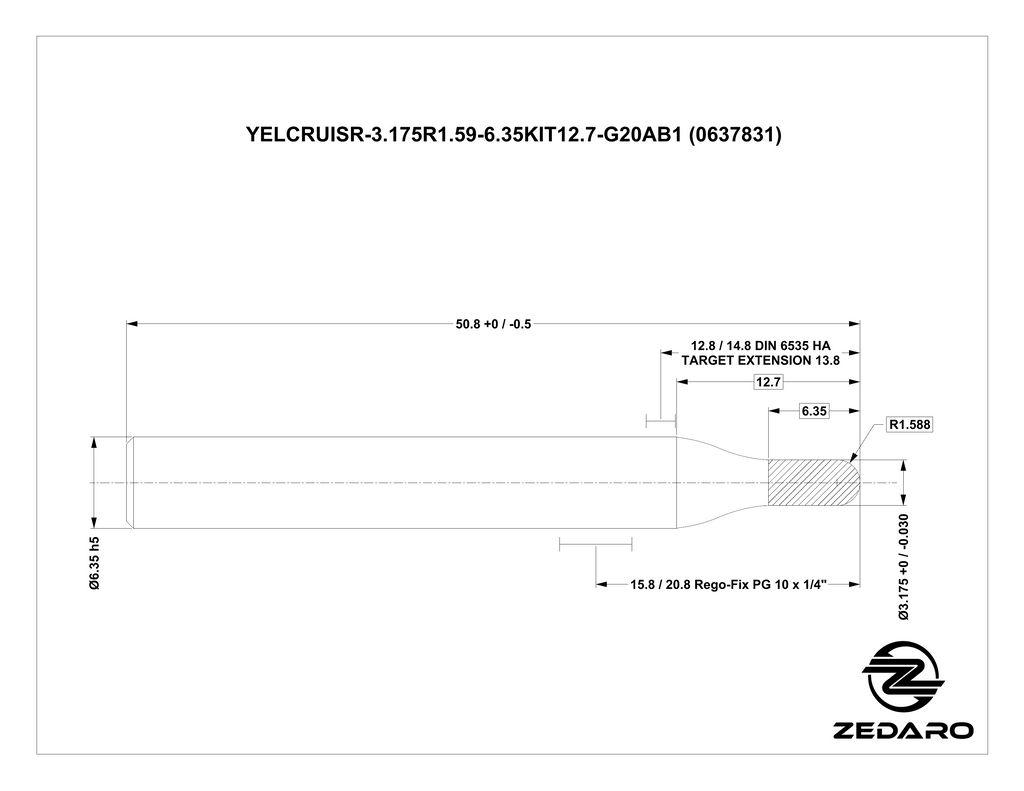

| Name | YELCRUISR-3.175R1.59-6.35KIT12.7-G20AB1 | |
| EDP # | 0637831 | |
| Material | Stainless Steel | Application | Finish Flank Milling >20k RPM (Cruiser) |

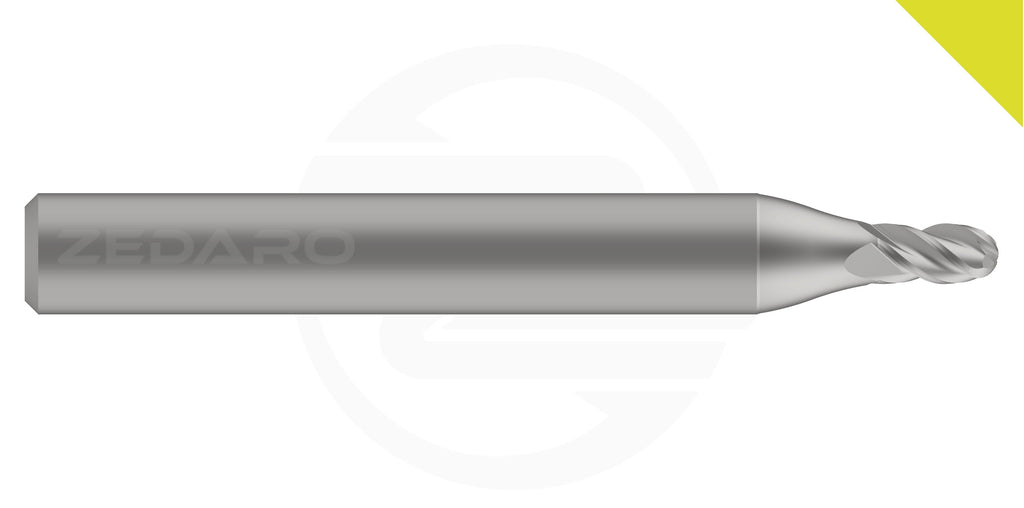

| Form | End Mill - Ball | |
| Cutting Diameter | 0.1250" | 3.175 mm |
| Corner Radius | 0.0626" | 1.590 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.2500" | 6.350 mm |
| Reach | 0.2500" | 6.350 mm |
| Minimum Extension | 0.5" | 12.7 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
