Description
Ceratizit Article Number: 5236242001
Ceratizit Material Number: 5236242001
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit H.TO.2.0.30°.Z2.R0.1.HA.ML6.0 TI2000 BlueLine - Micro-torus Cutter 5236242001 | |
| EDP # | 0649764 | |
| Weight (1 pc.) | 0.5 oz | 13.4 g |

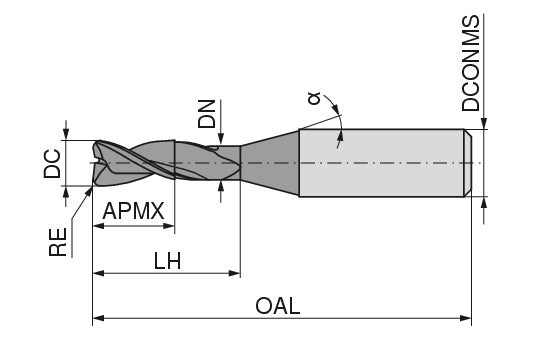

| Cutting diameter / DC -0,008 | 0.0787" | 2.000 mm |
| Corner radius / RE ±0,005 | 0.0039" | 0.100 mm |
| Depth of cut maximum / APMX | 0.0787" | 2.000 mm |
| Neck Diameter / DN | 0.0752" | 1.910 mm |
| Head length / LH | 0.2362" | 6.000 mm |
| Protruding length / LPR | 0.8661" | 22.000 mm |
| Overall length / OAL | 1.9685" | 50.000 mm |
| Alpha | 16 | |
| Mounting spigot diameter / DCONMS h5 | 0.1575" | 4.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Coating name / Grade (Ceratizit) / COATN | Ti2000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
