Description
H.SA.12,0.30°.Z6.R1,5.HB.L TI2000 CARBIDE END MILL WITH CORNER RADIUS With decreasing helix angle for reduced machining noise & vibration
Mat No: 5214112500, Article No: 52141125
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

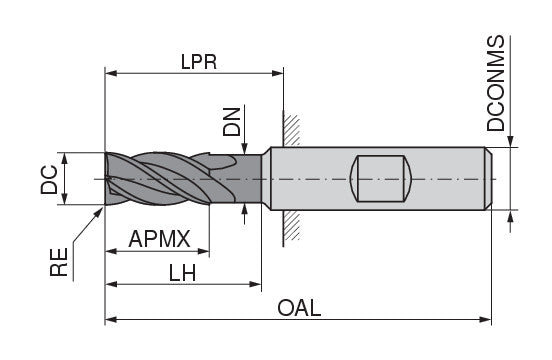

| Properties | ||
|---|---|---|
| Name | CERATIZIT H.SA.12,0.30°.Z6.R1,5.HB.L TI2000 CARBIDE END MILL WITH CORNER RADIUS 5214112500 (0649805) | |
| EDP # | 0649805 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 4.6 oz | 131.8 g |
| Cutting diameter DC/d1 e8 | 0.4724 inch | 12 mm |
| Corner radius RE/r ±0.01 | 0.0591 inch | 1.5 mm |
| Depth of cut maximum APMX/l2 | 0.4724 inch | 12 mm |
| Neck Diameter DN/d3 | 0.4331 inch | 11 mm |
| Head length LH/l3 | 1.4961 inch | 38 mm |
| Protruding length LPR/l5 | 1.4961 inch | 38 mm |
| Overall length OAL/l1 | 3.2677 inch | 83 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.4724 inch | 12 mm |
Application & Properties:
Suitable Materials:
