Description
Ceratizit Article Number: 10280175
Ceratizit Material Number: 1028017500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTL.17,50.R.5D.DIN345.MK2 VAP Twist drills, 10280175 | |
| EDP # | 0652567 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 11.0 oz | 298 g |

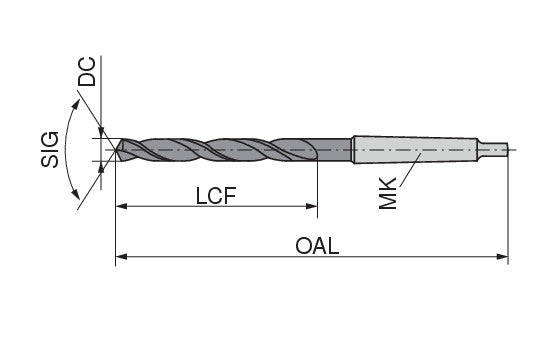

| Cutting diameter / DC h8 | 0.6890" | 17.500 mm |
| Overall length / OAL | 8.9764" | 228.000 mm |
| Length chip flute / LCF | 5.1181" | 130.000 mm |
| Morse taper adapter size | 2 | |
| Coating name / Grade (Ceratizit) / COATN | vap. | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
