Description
Ceratizit Article Number: 8420907089
Ceratizit Material Number: 12543785
Ceratizit Komet Number (Unpacked): A20 00230
Ceratizit Komet Number (Packed): A2000230
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

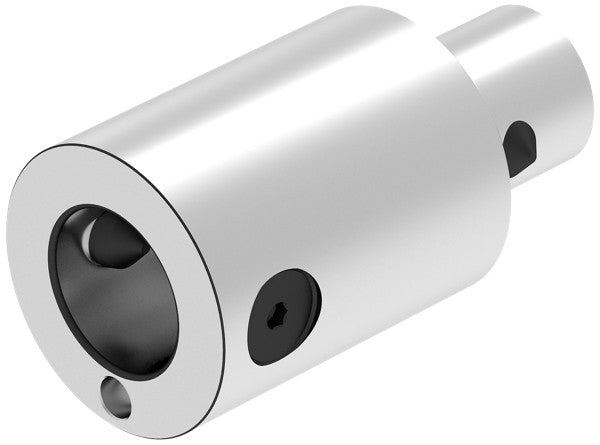

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit EXTENSION ABS32-V70F Extension With Connection 8420907089 | |
| EDP # | 0660770 | |
| Weight (1 pc.) | 15.0 oz | 437 g |

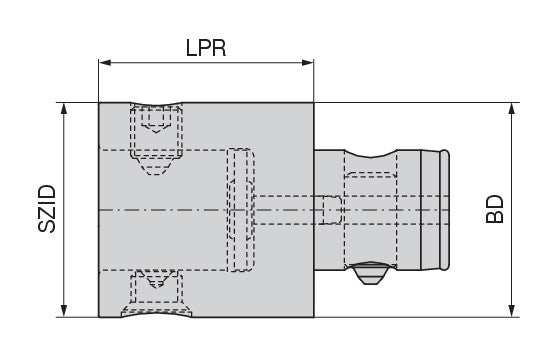

| Machine interface size | ABS 32 | |
| nominal size / SZID | ABS 32 | |
| Protruding length / LPR | 2.7559" | 70.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Overall length / OAL | 3.6614" | 93.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
