Description
Ceratizit Article Number: 5002125016
Ceratizit Material Number: 14414332
Ceratizit Komet Number (Unpacked): 37165099005000
Ceratizit Komet Number (Packed): 37165099005000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

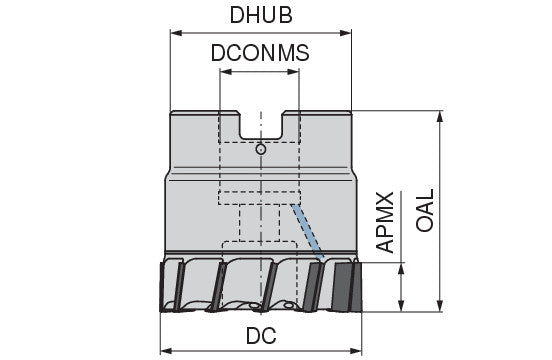

| Properties | ||
|---|---|---|
| Name | Ceratizit PCD Milling Cutter HPC 50 NZ16 22H6 Face 5002125016 | |
| EDP # | 0682178 | |
| Workpiece Material(s) | Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 15.0 oz | 412 g |
| Cutting diameter / DC | 1.9685" | 50.000 mm |
| Depth of cut maximum / APMX | 0.1969" | 5.000 mm |
| Face mounted insert count / ZNF | 16 | |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Hub diameter / DHUB | 1.6142" | 41.000 mm |
| Mounting spigot diameter / DCONMS H6 | 0.8661" | 22.000 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
