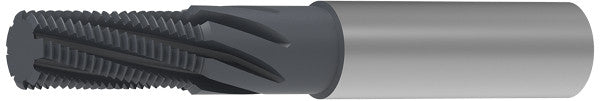

Ceratizit MGF M14X1.5 2,0D HPC IK ALCRN NZ7 MonoThread - Thread Milling Cutter With Chamfer Facet 5080714500 (0682280)


Price:
Sale price

Log-In and request Approval for pricing

Stock:

Description

Ceratizit Article Number: 5080714500

Ceratizit Material Number: 12542787

Ceratizit Komet Number (Unpacked): 88296002000131

Ceratizit Komet Number (Packed): 88296002000131

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit MGF M14X1.5 2,0D HPC IK ALCRN NZ7 MonoThread - Thread Milling Cutter With Chamfer Facet 5080714500
EDP # 0682280
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White)
Weight (1 pc.) 8.0 oz 231 g
Thread M14x1,5
Thread pitch / TP 0.0591" 1.500 mm
Cutting diameter / DC 0.4299" 10.920 mm
Depth of cut maximum / APMX 1.1299" 28.700 mm
Shank length / LS 1.8898" 48.000 mm
Overall length / OAL 4.0157" 102.000 mm
Mounting spigot diameter / DCONMS h6 0.6299" 16.000 mm
Countersunk diameter, max / DCSKX 0.5630" 14.300 mm
Functional length / LF 1.2047" 30.600 mm
Peripheral effective cutting edge count / ZEFP 7
Premachined hole diameter / PHD 0.4921" 12.500 mm
Coating name / Grade (Ceratizit) / COATN AlCrN


Suitable Materials:

Property imageProperty imageProperty imageProperty image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
