Description

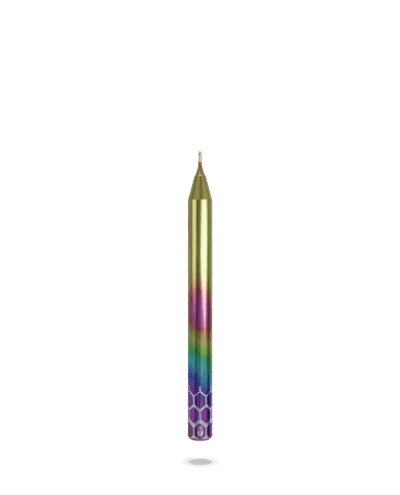

0.6mm 2-Flute Ball Carbide End Mill for Steel
OEM SKU: ST.TTN.B2.06.4.020.48.X.HRC
This product comes in packages of 1
Features:
- 0.6mm 2-Flute Ball Carbide End Mill for Steel
- FLATCOAT® TTN Coating, Shaft Diameter of 4mm.
- HS Code: 82077010
AlienTools is dedicated to bringing you high-quality futuristic CAD/CAM milling tools at great prices and incredible lifespans. Planet Earth headquarters is in Berlin, Germany.
We come in peace.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| OEM Part Name | 0.6mm 2-Flute Ball Carbide End Mill for Steel | |
| EDP # | 0707540 | |
| Weight | 0.014 kg | |
| Dimensions | 82 x 13 x 13 mm | |
| Milling Material | Steel | |
| Coating Type (CT) | FLATCOAT® TTN Titanium Coating | |
| Cutting Diameter (CD) | 0.6mm | |
| Cutting Geometry | Ball-Nosed | |
| Flutes | 2 | |
| Shank Diameter (SD) | 4mm | |
| Flute Length (FL) | 0.6mm | |
| Reach Length (RL) | 2mm | |
| Overall Length (OL) | 48mm | |
| Neck Diameter (ND) | 0.55mm | |
| Remeasured to 1 Micron | No | |
| Sample Box | no | |
