Description
Ceratizit Article Number: 70850016
Ceratizit Material Number: 227015
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

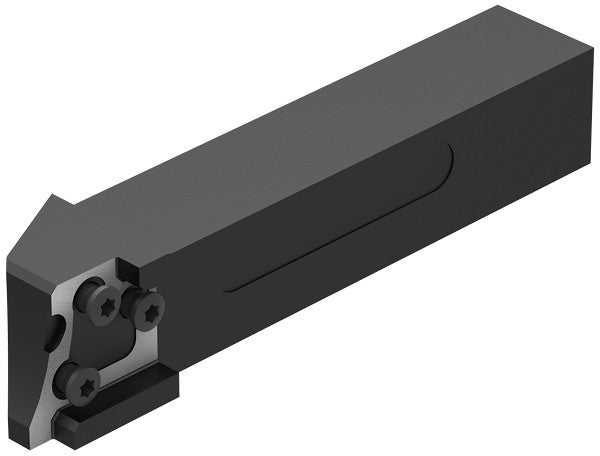

| Name | Ceratizit MSS-E16R00-1616G ModularClamp Tool Holder 0° 70850016 | |
| EDP # | 0710945 | |
| Weight (1 pc.) | 7.0 oz | 203 g |

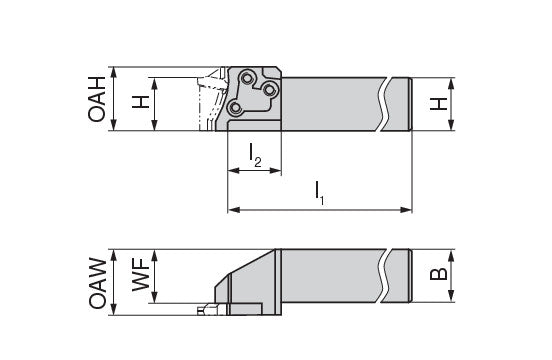

| Shank height / H | 0.6299" | 16.000 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| Overall width / OAW | 0.7579" | 19.250 mm |
| Overall height / OAH | 0.7677" | 19.500 mm |
| Functional width / WF | 0.6201" | 15.750 mm |
| L1 | 3.5433" | 90.000 mm |
| L2 | 0.6299" | 16.000 mm |
| Head length / LH | 0.7756" | 19.700 mm |
| Overall length / OAL | 3.6890" | 93.700 mm |
| Version | Right-hand | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
