Description
Ceratizit Article Number: 70865116
Ceratizit Material Number: 227181
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

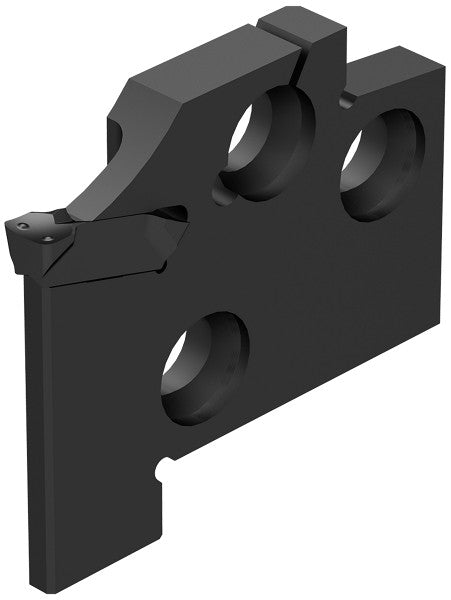

| Name | Ceratizit MSS-E16R07-GX09-2 ModularClamp Radial Grooving Module 09/16 70865116 | |
| EDP # | 0710966 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 0.4 oz | 10.0 g |

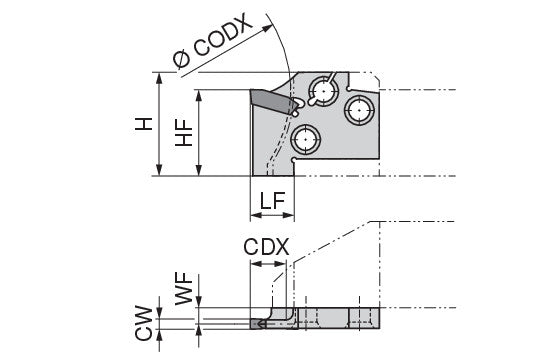

| Functional height / HF | 0.6299" | 16.000 mm |
| Functional width / WF | 0.1102" | 2.800 mm |
| Functional length / LF | 0.3150" | 8.000 mm |
| Shank height / H | 0.7677" | 19.500 mm |
| Parting off diameter, max. / CODX | 1.8898" | 48.000 mm |
| Cutting depth maximum / CDX | 0.2756" | 7.000 mm |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
