Description
Ceratizit Article Number: 7886326300
Ceratizit Material Number: 11142639
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

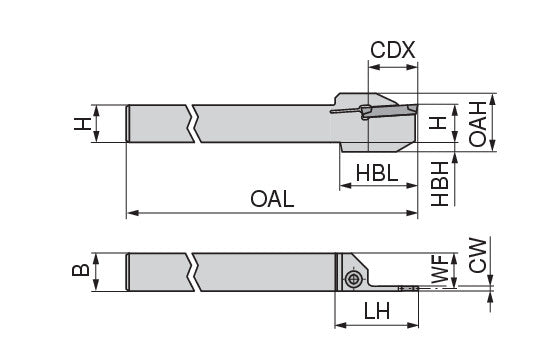

| Properties | ||
|---|---|---|

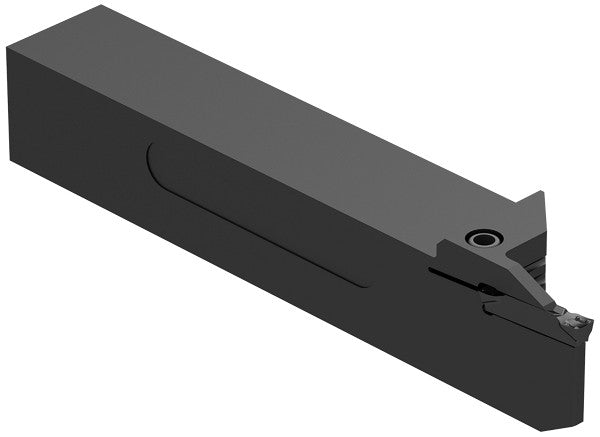

| Name | Ceratizit E16L0021-10C-GX24-2-E MonoClamp Radial Monoholder 7886326300 | |
| EDP # | 0712260 | |
| Weight (1 pc.) | 10.0 oz | 274 g |
| Shank height / H | 0.6250" | 15.875 mm |
| Shank width / B | 0.6250" | 15.875 mm |
| Functional width / WF | 0.5860" | 14.884 mm |
| Overall length / OAL | 5.0000" | 127.000 mm |
| Head length / LH | 1.3780" | 35.001 mm |
| L5 | 1.2600" | 32.004 mm |
| Overall height / OAH | 0.8220" | 20.879 mm |
| Cutting depth maximum / CDX | 0.8270" | 21.006 mm |
| A | 0.1620" | 4.115 mm |
| Cutting width range / CW | 2.76 - 3.75 mm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
