Description
RP.20.69,75.254.IK.HB CLEANING FAN Chip and emulsion removal or drying processes via the tool spindle Simple replacement of the rotor blades
Mat No: 8039902000, Article No: 8039902000
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

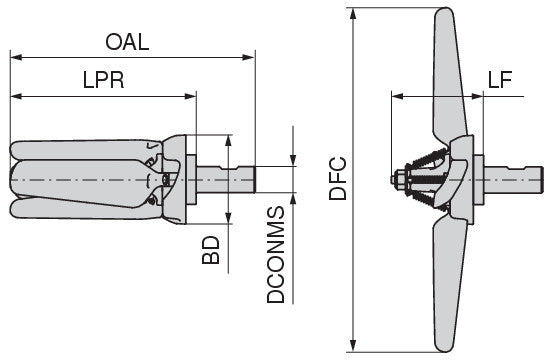

| Properties | ||
|---|---|---|
| Name | Ceratizit RP.20.69,75.254.IK.HB CLEANING FAN 8039902000 (0727346) | |
| EDP # | 0727346 | |
| Weight | 16.8 oz | 475.4 g |
| Rotational speed maximum RPMX | 5000 - 8000 1/min. | |
| Overall length OAL | 7.3346 inch | 186.3 mm |
| Protruding length LPR | 5.563 inch | 141.3 mm |
| Functional length LF | 2.7461 inch | 69.75 mm |
| Functional diameter DFC | 10 inch | 254 mm |
| Mounting spigot diameter DCONMS | 0.7874 inch | 20 mm |
| Neck diameter (BD) BD | 2.6646 inch | 67.68 mm |
| Designation | RP.20.69.75.254.IK.HB | |
