Description
Material Number: 5215210000
Article Number: 52152100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

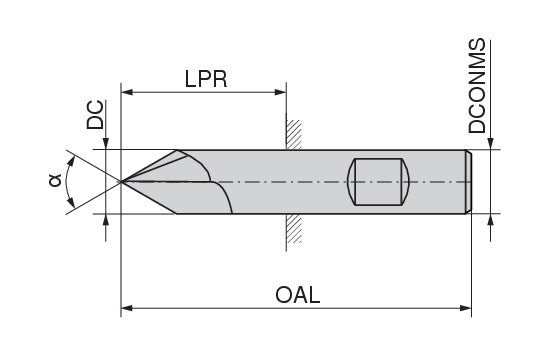

| Properties | ||
|---|---|---|
| Name | Ceratizit N.EF.10,0.120°.Z4.HB SOLID CARBIDE NC DEBURRING CUTTER 5215210000 (0728391) | |
| EDP # | 0728391 | |
| Weight | 2.0 oz | 60.8 g |
| Cutting diameter DC h6 | 0.3937 inch | 10 mm |
| Depth of cut maximum APMX | 0.1138 inch | 2.89 mm |
| Overall length OAL | 2.3622 inch | 60 mm |
| Protruding length LPR | 0.7874 inch | 20 mm |
| Mounting spigot diameter DCONMS h6 | 0.3937 inch | 10 mm |
| Profile angle PRFA | 120 ° | |
| Peripheral effective cutting edge count ZEFP | 4 | |
