Description

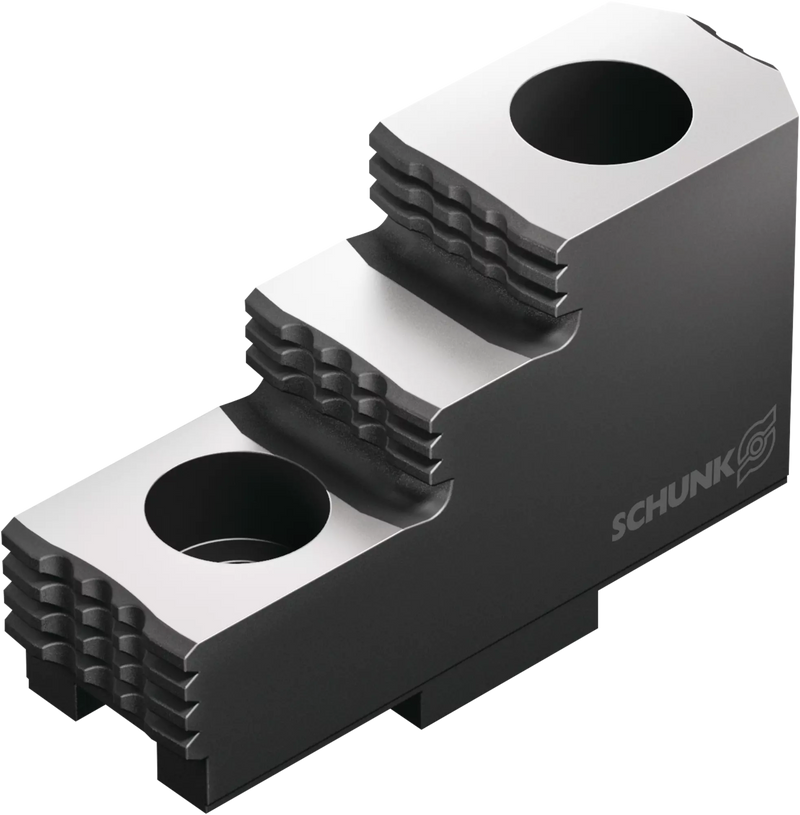

SHF 160
Hard stepped top jaws
ID 155100
This product comes in packages of 1
SHF 160, Hard stepped top jaws
- Serration: Tongue and groove
- Groove width: 8 mm
- Width of path: 18 mm
- Delivery unit: 1 set = 3 pieces
Product group | Hard stepped top jaws |
---|---|
Serration | Tongue and groove |
Slot width N [mm] | 8 |
Tab width S [mm] | 18 |
Width B [mm] | 20 |
Height H [mm] | 36.5 |
Height H1 [mm] | 32.5 |
Length L [mm] | 63 |
Clamping depth T [mm] | 7.5 |
Hole spacing a [mm] | 16.8 |
Hole spacing b [mm] | 32 |
Screws | M8 |
Material | Steel 16MnCr5, hardened |
m/set [kg] | 0.6 |
