Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
The 'Basher' line is designed for aggressive roughing and machine tools capable of spindle speeds up to 20K rpm. It incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions. The design incorporates our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates.
'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
| Tool Properties | ||
|---|---|---|

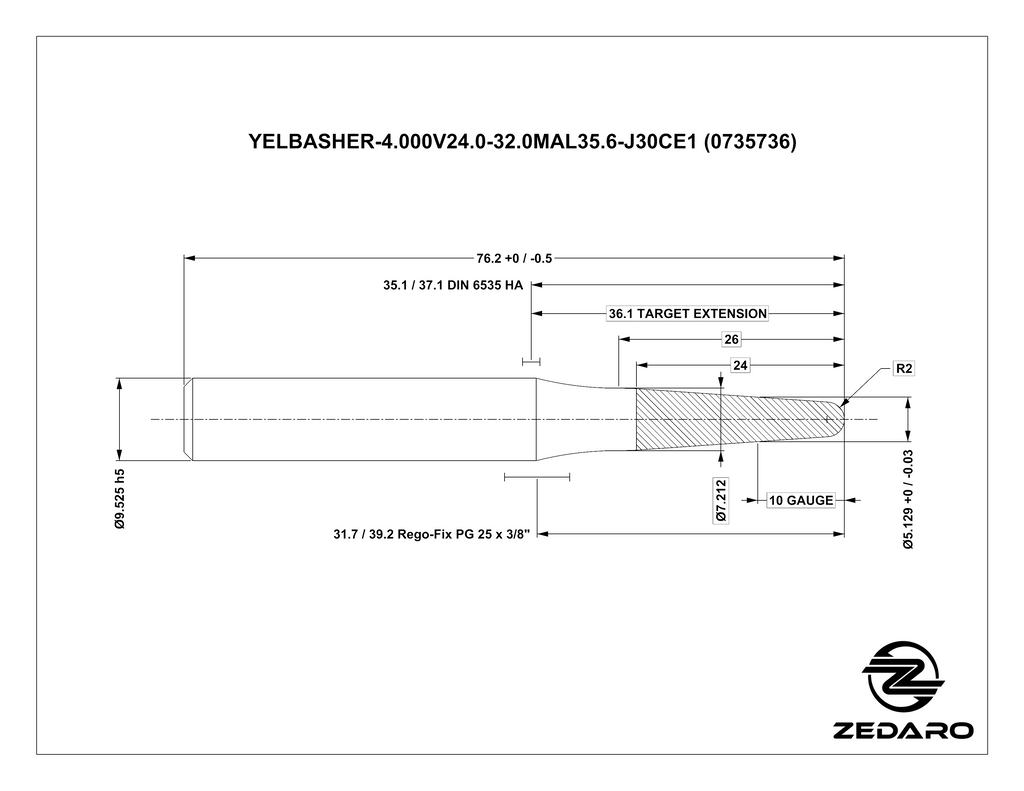

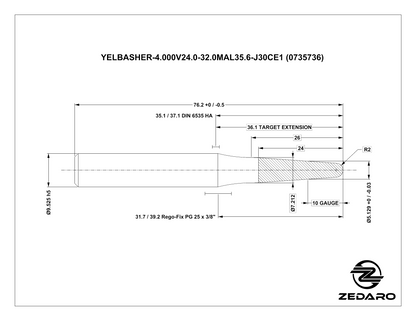

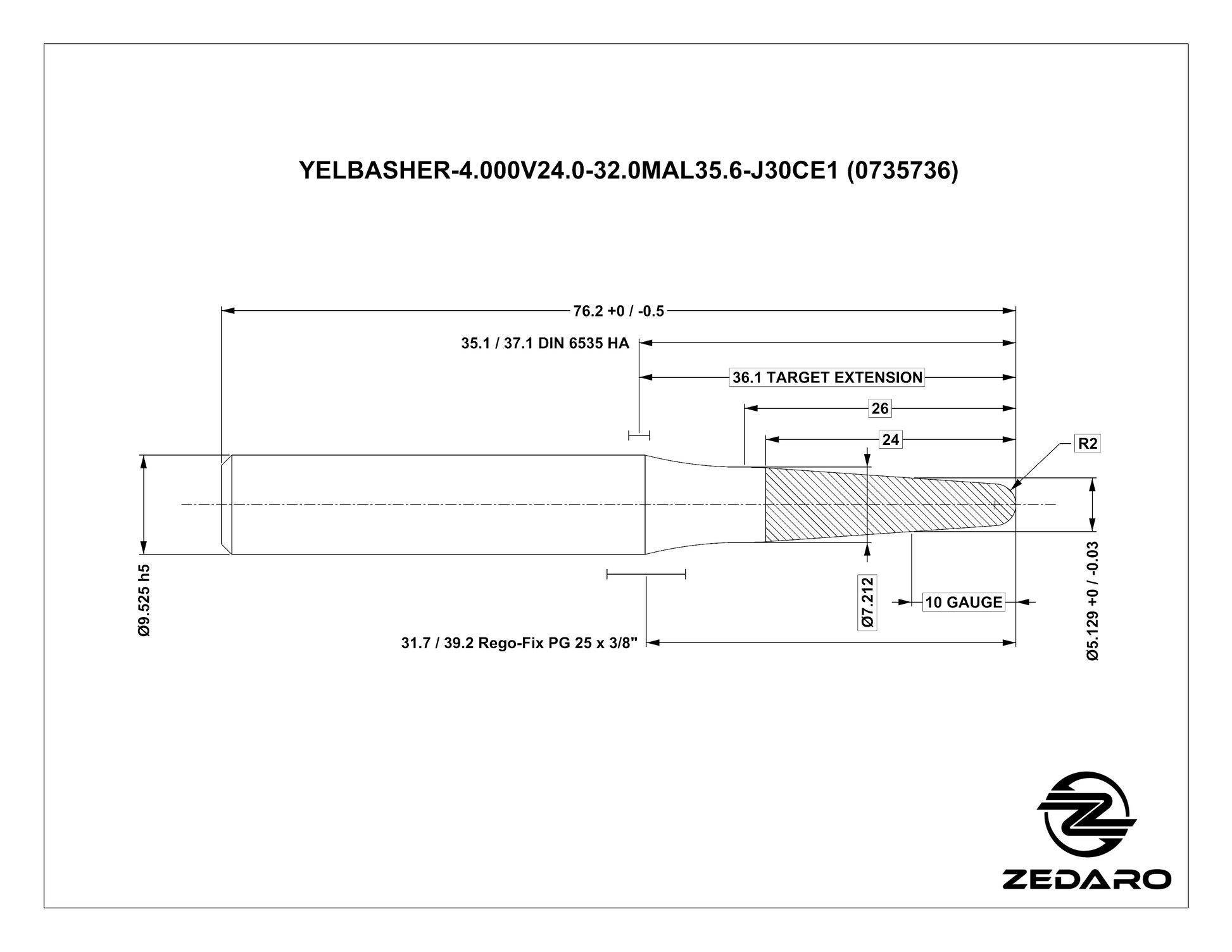

| Name | YELBASHER-4.000V24.0-32.0MAL35.6-J30CE1 | |
| EDP # | 0735736 | |
| Material | Stainless Steel | Application | Rough 3D Milling w/ Chip Breakers <20k RPM (Basher) |

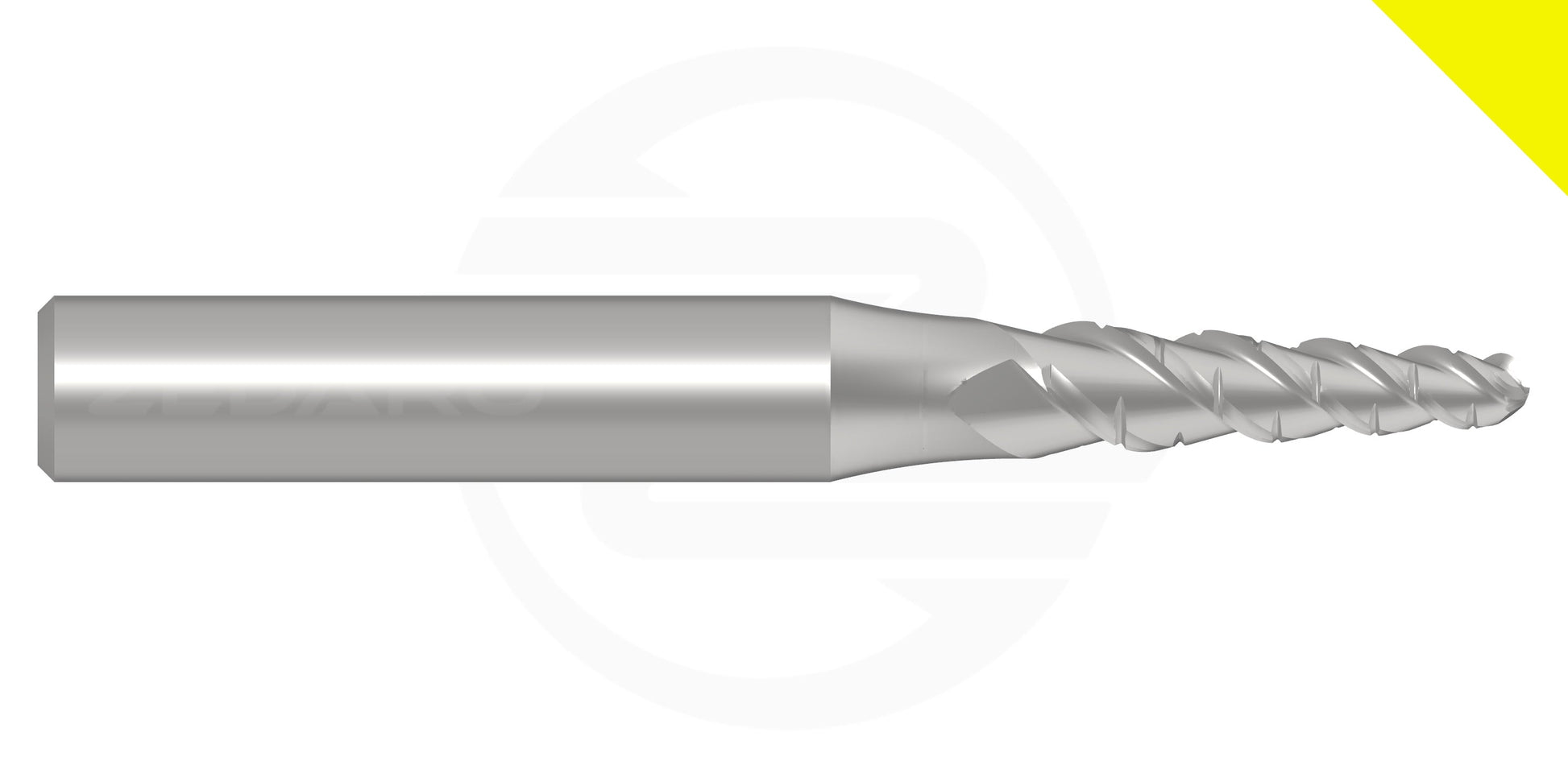

| Form | Tapered Ball-Nose End Mill | |
| Cutting Diameter | 0.1575" | 4.000 mm |
| Taper per Side | 4.0° | |
| Length of Cut | 0.9449" | 24.000 mm |
| Reach | 1.2598" | 32.000 mm |
| Minimum Extension | 1.4" | 35.6 mm |
| Maximum Extension | 2.4" | 61.9 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 3.0" | 76 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h9 | |
