Description
The 'Red' line of tooling is designed specifically for cutting cast iron.

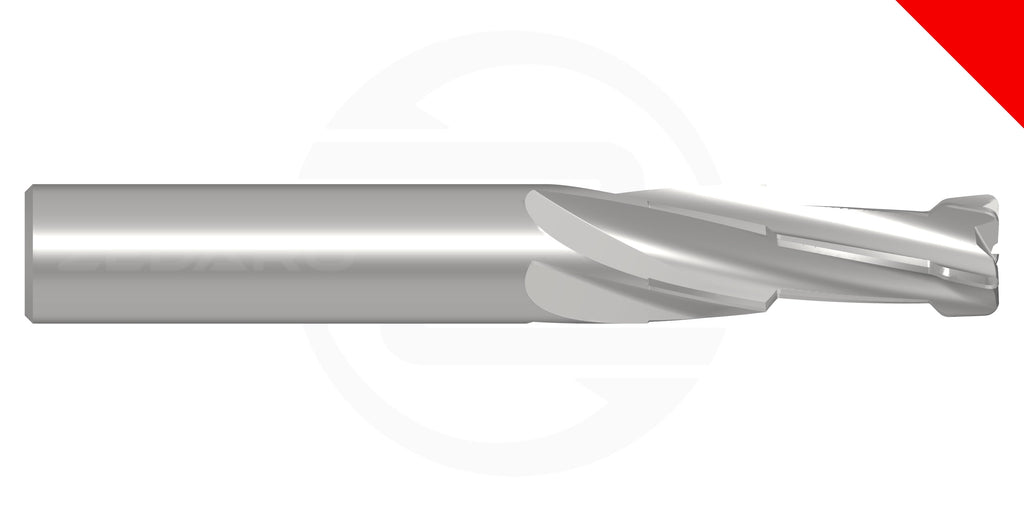

The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
| Tool Properties | ||
|---|---|---|

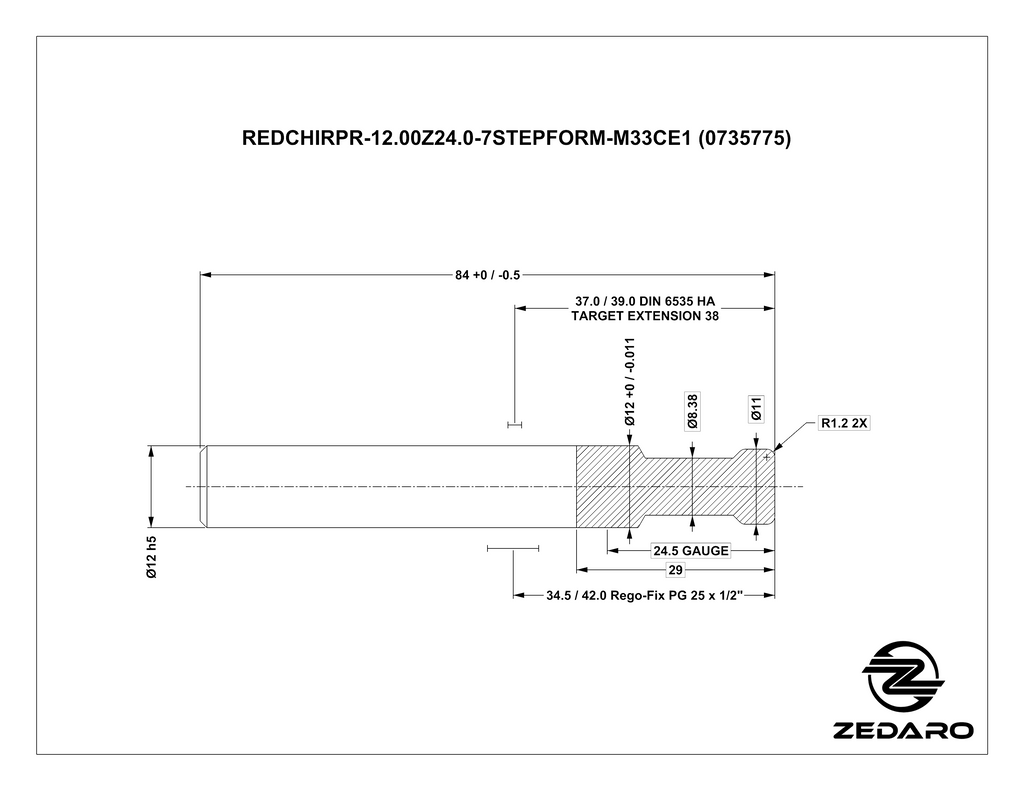

| Name | REDCHIRPR-12.00Z24.0-7STEPFORM-M33CE1 | |
| EDP # | 0735775 | |
| Material | Cast Iron | Application | Finish Flank Milling <20k RPM (Chirper) |
| Form | Contour / Profile Tool | |
| Gauge Diameter | 0.4724" | 12.000 mm |
| Gauge Distance (from tip) | 0.9449" | 24.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.1417" | 29.000 mm |
| Reach | 1.1811" | 30.000 mm |
| Minimum Extension | 1.3" | 32.0 mm |
| Maximum Extension | 2.6" | 65.8 mm |
| Shank Diameter h6 | 0.4724" | 12.000 mm |
| Overall Length | 3.3" | 84 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
