Description
Ceratizit Article Number: 4030008096
Ceratizit Material Number: 12543643
Ceratizit Komet Number (Unpacked): 72A.60.08000
Ceratizit Komet Number (Packed): 72A6008000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

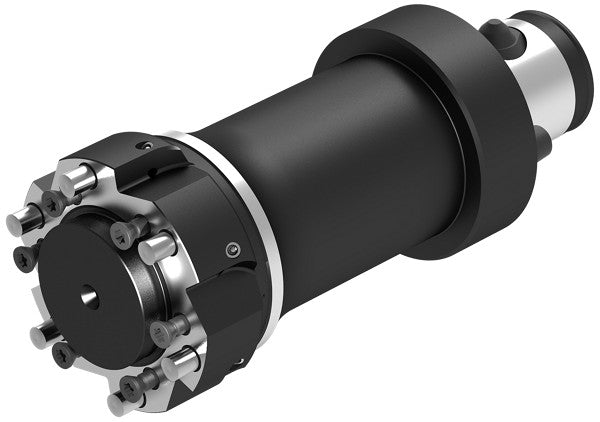

| Name | Ceratizit FREEMAX ABS63 Ø 80 Freemax - Tool Holder With ABS-connection 4030008096 | |
| EDP # | 0756130 | |
| Weight (1 pc.) | 112.0 oz | 3164 g |

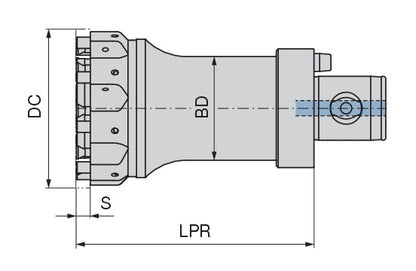

| Cutting diameter / DC | 3.1496" | 80.000 mm |
| Protruding length / LPR | 4.9213" | 125.000 mm |
| Insert thickness / S | 0.2756" | 7.000 mm |
| Face mounted insert count / ZNF | 8 | |
| torque moment | 4.3 Nm | |
| Machine interface size | ABS 63 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
