Description
Ceratizit Article Number: 3019723500
Ceratizit Material Number: 12544654
Ceratizit Komet Number (Unpacked): F10 00390
Ceratizit Komet Number (Packed): F1000390
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

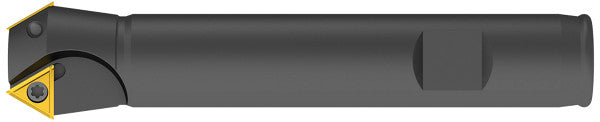

| Name | Ceratizit COUNTERSINK TOOL KWS-M18-60 Indexable Chamfer Milling 60° 3019723500 | |
| EDP # | 0756420 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 165 g |
| for screws | M18 | |

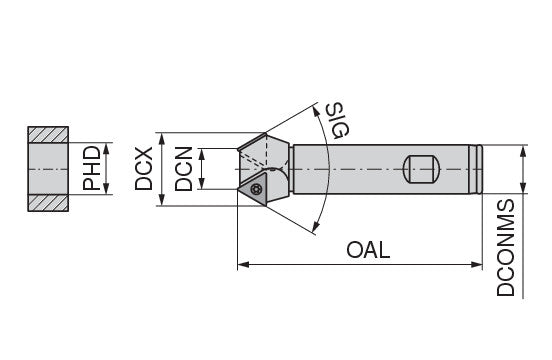

| Cutting diameter maximum / DCX | 0.9252" | 23.500 mm |
| Cutting diameter minimum / DCN | 0.5945" | 15.100 mm |
| Premachined hole diameter / PHD | 0.6102" | 15.500 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Face mounted insert count / ZNF | 2 | |
| torque moment | 1.28 Nm | |
| Insert | TOHX 090204 | |
| SIG / SIG | 60 ° | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
