Description
Ceratizit Article Number: 54037040
Ceratizit Material Number: 5403704000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

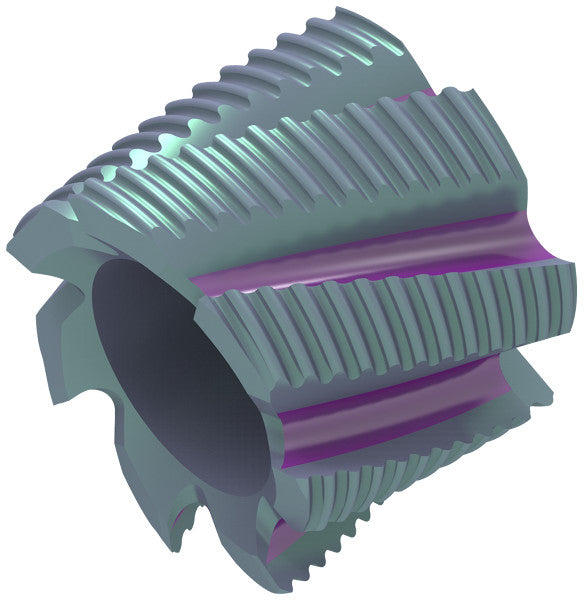

| Name | Ceratizit HR.WSF.40X32.Z7 TI100PRO Roughing-finishing Face Milling Cutters HSS-E Co 8 54037040 | |
| EDP # | 0762093 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 16.0 g |

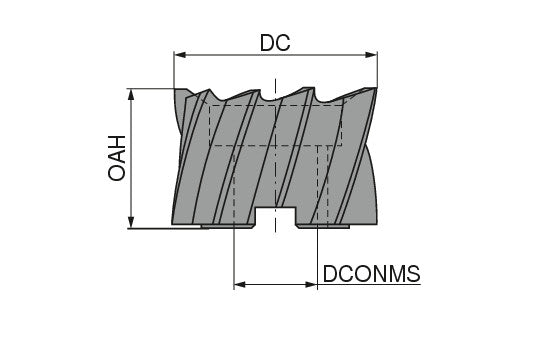

| Cutting diameter / DC js14 | 1.5748" | 40.000 mm |
| Overall height / OAH | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Peripheral effective cutting edge count / ZEFP | 7 | |
| coating name / COATN | Ti100 Pro | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
