Ceratizit N.RD.18,0.30°.Z2.HB.EK TI100PRO Ball Nosed End Milling Cutter HSS-E Co 54041180 (0762111)


Price:
Sale price$185.85
Stock:
Not in stock - Available to order

Description

Ceratizit Article Number: 54041180

Ceratizit Material Number: 5404118000

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit N.RD.18,0.30°.Z2.HB.EK TI100PRO Ball Nosed End Milling Cutter HSS-E Co 54041180
EDP # 0762111
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White)
Weight (1 pc.) 4.0 oz 115 g

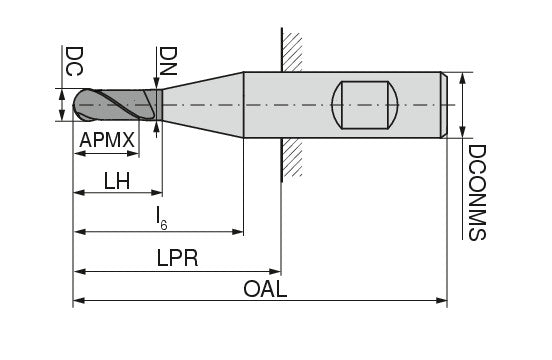

Cutting diameter / DC h10 0.7087" 18.000 mm
Depth of cut maximum / APMX 0.7480" 19.000 mm
Neck Diameter / DN 0.6102" 15.500 mm
Head length / LH 1.1417" 29.000 mm
L6 1.1417" 29.000 mm
Protruding length / LPR 1.2205" 31.000 mm
Overall length / OAL 3.1102" 79.000 mm
Mounting spigot diameter / DCONMS h6 0.6299" 16.000 mm
Peripheral effective cutting edge count / ZEFP 2
coating name / COATN Ti100 Pro


Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
