Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
The 'Picker' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds over 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

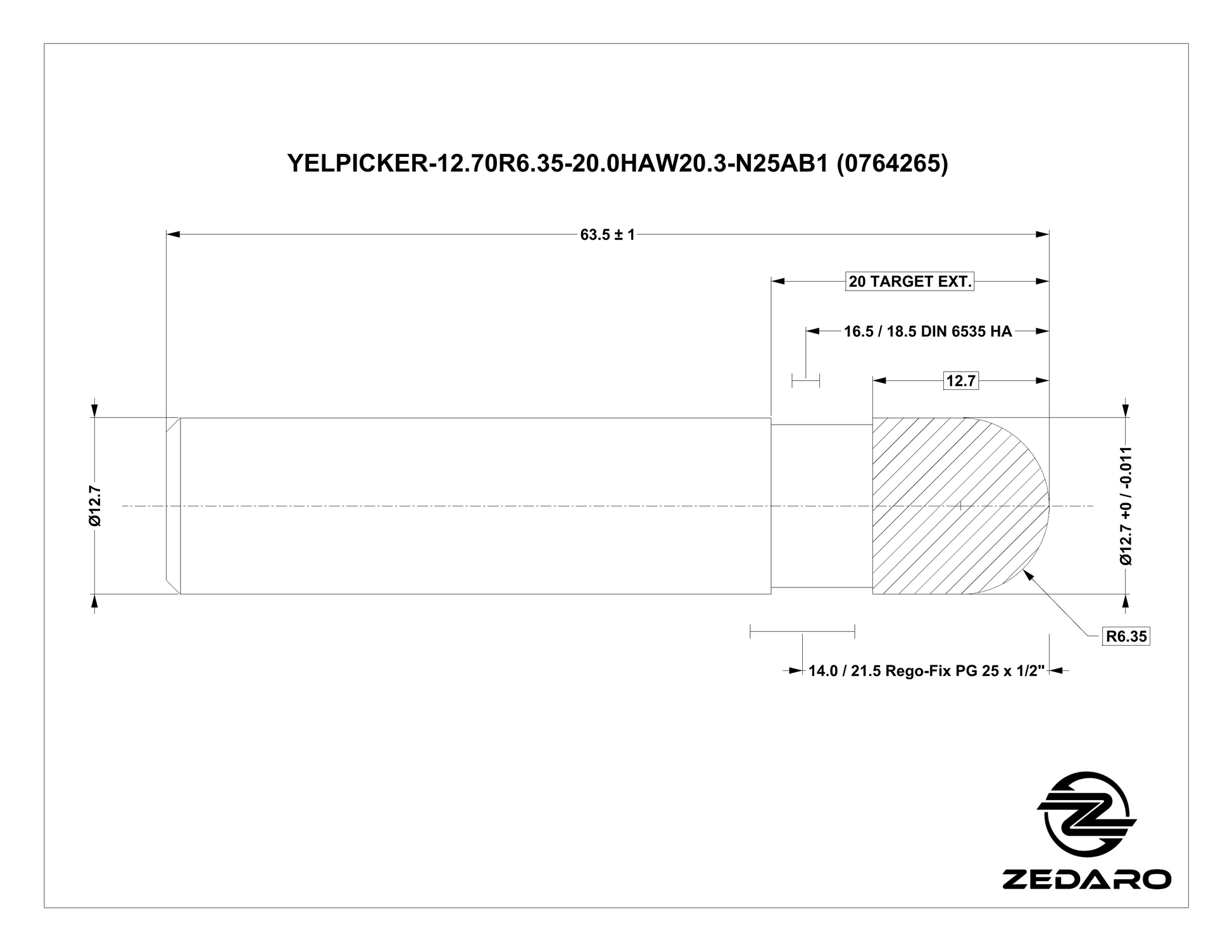

| Name | YELPICKER-12.70R6.35-20.0HAW20.3-N25AB1 | |
| EDP # | 0764265 | |
| Material | Stainless Steel | Application | Finish 3D Point Milling <20k RPM (Picker) |

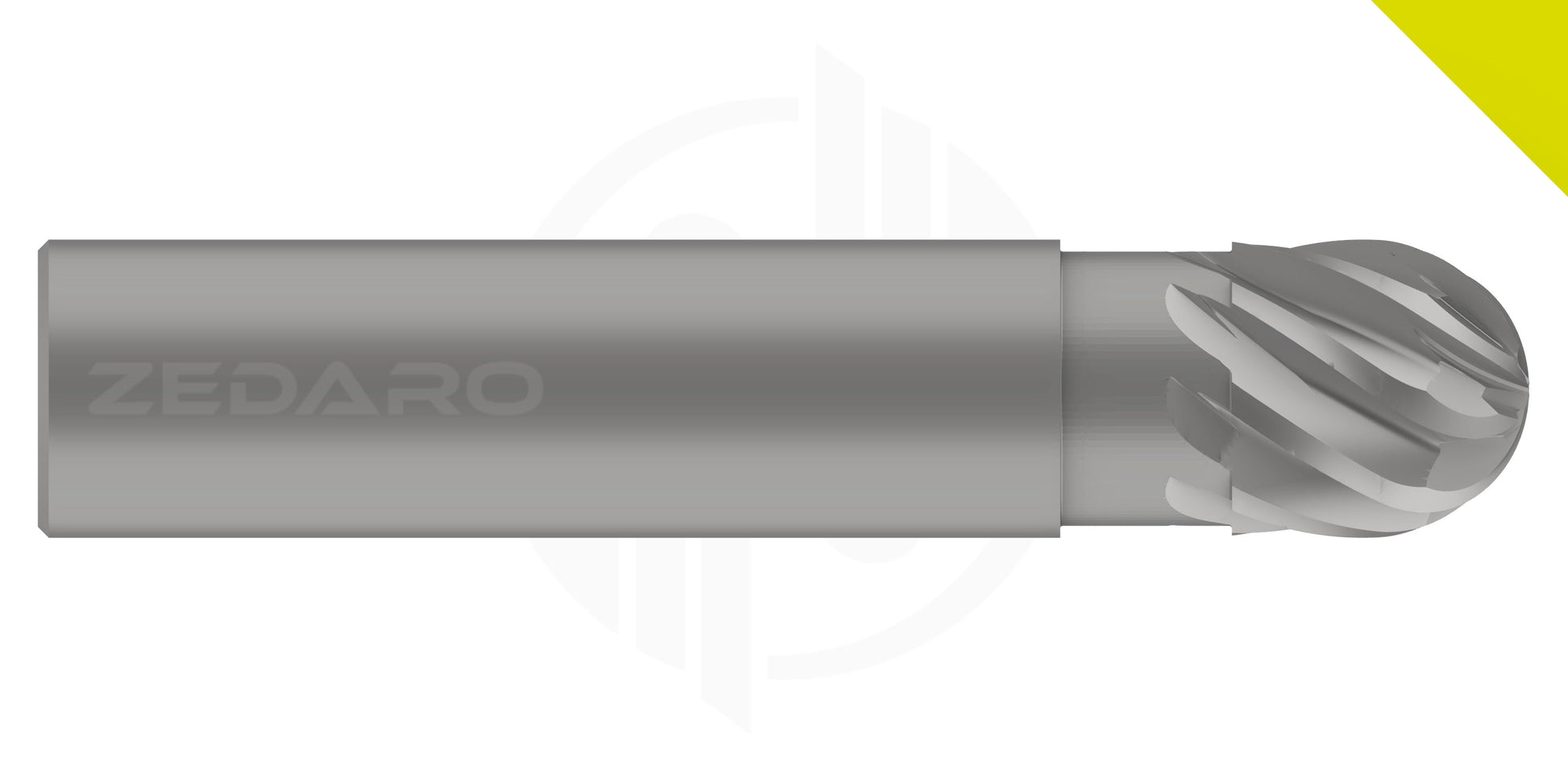

| Form | End Mill - Ball | |
| Cutting Diameter | 0.5000" | 12.700 mm |
| Corner Radius | 0.2500" | 6.350 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.5000" | 12.700 mm |
| Reach | 0.7874" | 20.000 mm |
| Minimum Extension | 0.8" | 20.3 mm |
| Maximum Extension | 1.8" | 44.5 mm |
| Shank Diameter h6 | 0.5000" | 12.700 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 8 | |
| Tolerance Class | h6 | |
