Description
Zedaro UID: 0776729
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

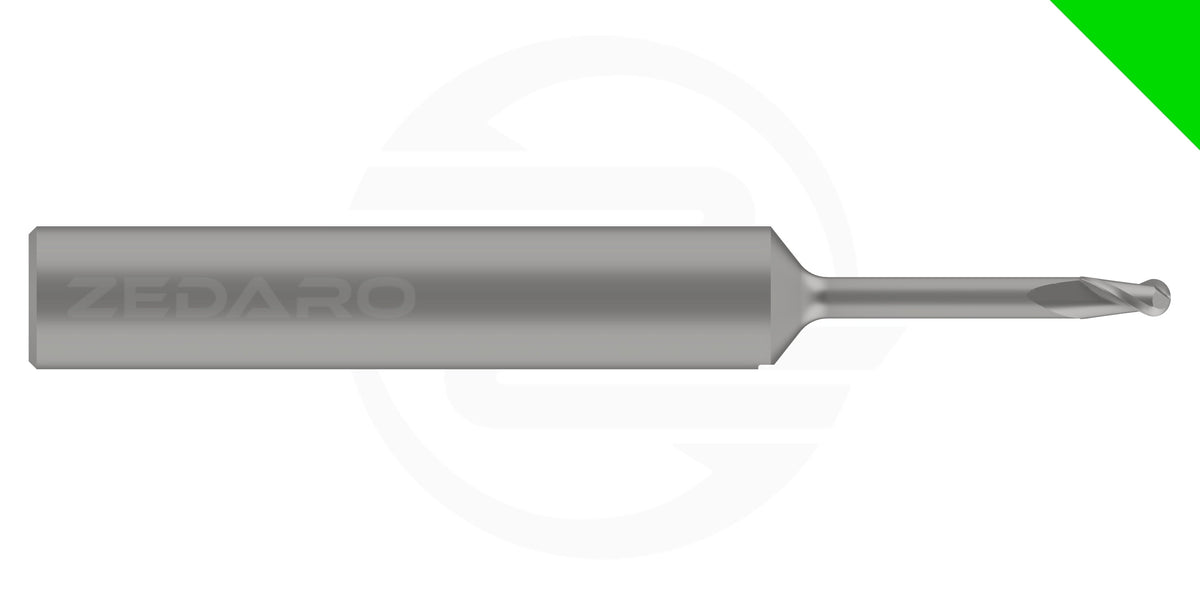

| Name | GRNCRUISR-2.000R1.00-16.0KIT18.5-G20CC1 | |
| EDP # | 0776729 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 25.0 g |
| Cutting Diameter | 0.0787" | 2.000 mm |
| Corner Radius | 0.0394" | 1.000 mm |
| Application | Finish Flank Milling >20k RPM (Cruiser) | |
| Form | R-BALL | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Length of Cut | 0.1575" | 4.000 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | 0.6299" | 16.000 mm |
| Minimum Extension | 0.7283" | 18.500 mm |
| Maximum Extension | 1.6260" | 41.300 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Cruiser' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds above 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'KIT' refers to the bird species 'Kite'.
