Description
Mapal Order Number: 31150954
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

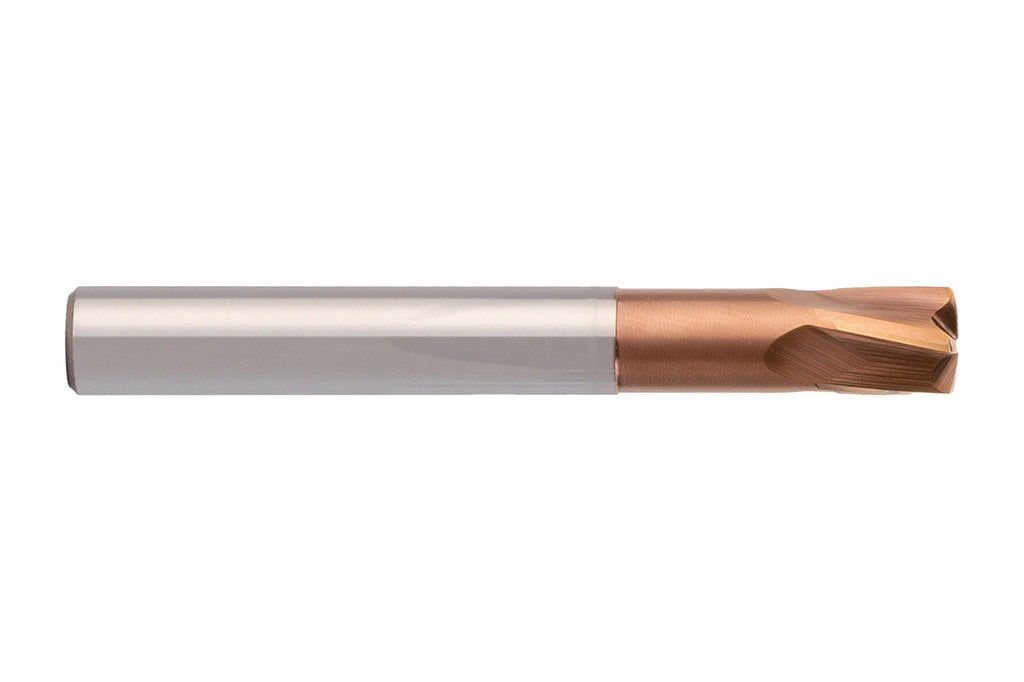

| Name | Mapal MHF102-080-0740-2400X064-HP810 OptiMill®-3D-HF-Hardened 31150954 | |
| EDP # | 0675354 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.3150" | 8.000 mm |
| Shaft Diameter (d2) | 0.3150" | 8.000 mm |
| Cylindrical Part Diameter (d3) | 0.3031" | 7.700 mm |
| Total Length (l1) | 2.5197" | 64.000 mm |
| Length Of Cutting Edge (l2) | 0.3150" | 8.000 mm |
| Neck Length (l3) | 0.9449" | 24.000 mm |
| Corner Radius (R) | 0.0157" | 0.400 mm |
| Number Of Cutting Edges (z) | 4 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 1.0236" - 1.1024" | 26.000 - 28.000 mm |
Product Features:
- The OptiMill®-3D-HF-Hardened high feed milling cutter was specially developed for roughing and finishing hardened components with a hardness of up to 66 HRC. Due to the innovative face geometry, the milling cutter achieves very high surface qualities even with interrupted cutting.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
