Description
Mapal Order Number: 30564624
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

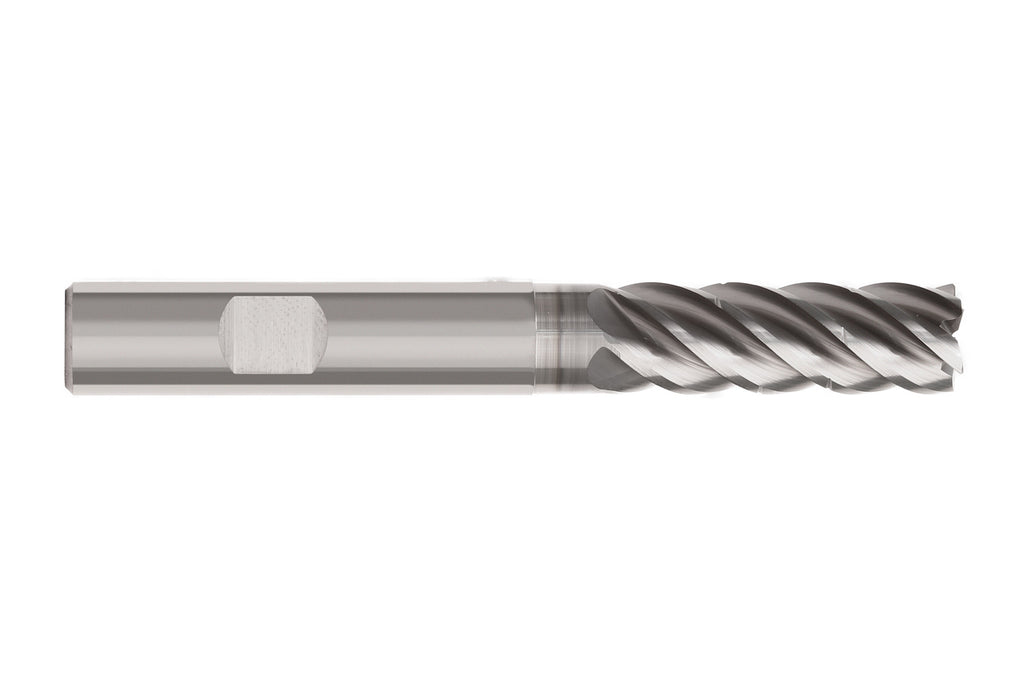

| Name | Mapal SCM580-0600Z05R-F0012HB3-HP213 OptiMill®-Tro-Uni 30564624 | |
| EDP # | 0675583 | |
| Product Class | Expert-Line | |
| Diameter (d1) | 0.2362" | 6.000 mm |
| Shaft Diameter (d2) | 0.2362" | 6.000 mm |
| Cylindrical Part Diameter (d3) | 0.2283" | 5.800 mm |
| Total Length (l1) | 2.4409" | 62.000 mm |
| Length Of Cutting Edge (l2) | 0.7087" | 18.000 mm |
| Neck Length (l3) | 0.9843" | 25.000 mm |
| Corner Bevel Width Cx45° | 0.0047" | 0.120 mm |
| Number Of Cutting Edges (z) | 5 | |
| Cooling | External Cooling | |
| Shank Type | HB | |
| Cutting Material | HP213 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 0.9449" - 1.0236" | 24.000 - 26.000 mm |
Product Features:
- The OptiMill®-Tro-Uni corner milling cutter was specially developed for trochoidal cutting of steel and cast iron. The milling cutter has five cutting edges with optimised unequal pitch and geometry. These features in combination with the balancing of the cutting part to G2.5 ensure reduced vibrations and high surface qualities. Material-specific chip splitters ensure problem-free chip removal.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
