Description
Mapal Order Number: 31054514
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

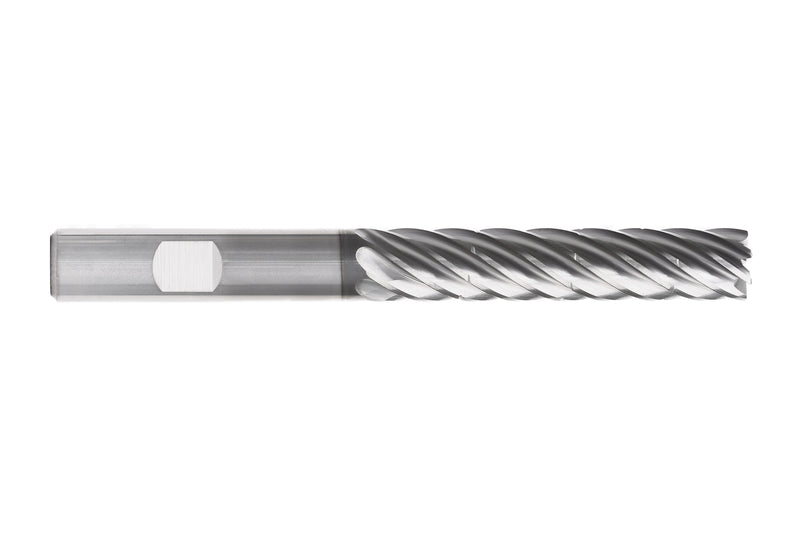

| Name | Mapal SCM930-1200Z07R-F0024HB5-HP210 OptiMill®-Tro-PM 31054514 | |
| EDP # | 0676026 | |
| Product Class | Expert-Line | |
| Diameter (d1) | 0.4724" | 12.000 mm |
| Shaft Diameter (d2) | 0.4724" | 12.000 mm |
| Total Length (l1) | 4.4094" | 112.000 mm |
| Length Of Cutting Edge (l2) | 2.3622" | 60.000 mm |
| Corner Bevel Width Cx45° | 0.0094" | 0.240 mm |
| Number Of Cutting Edges (z) | 7 | |
| Cooling | External Cooling | |
| Shank Type | HB | |
| Cutting Material | HP210 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 2.5591" - 2.6378" | 65.000 - 67.000 mm |
Product Features:
- The OptiMill-Tro-PM with seven cutting edges convinces with highest precision and unique productivity. The increased number of teeth enables higher total feed rates. This reduces the machining time and significantly increases productivity. The use of a new substrate also ensures a significantly longer tool life.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
